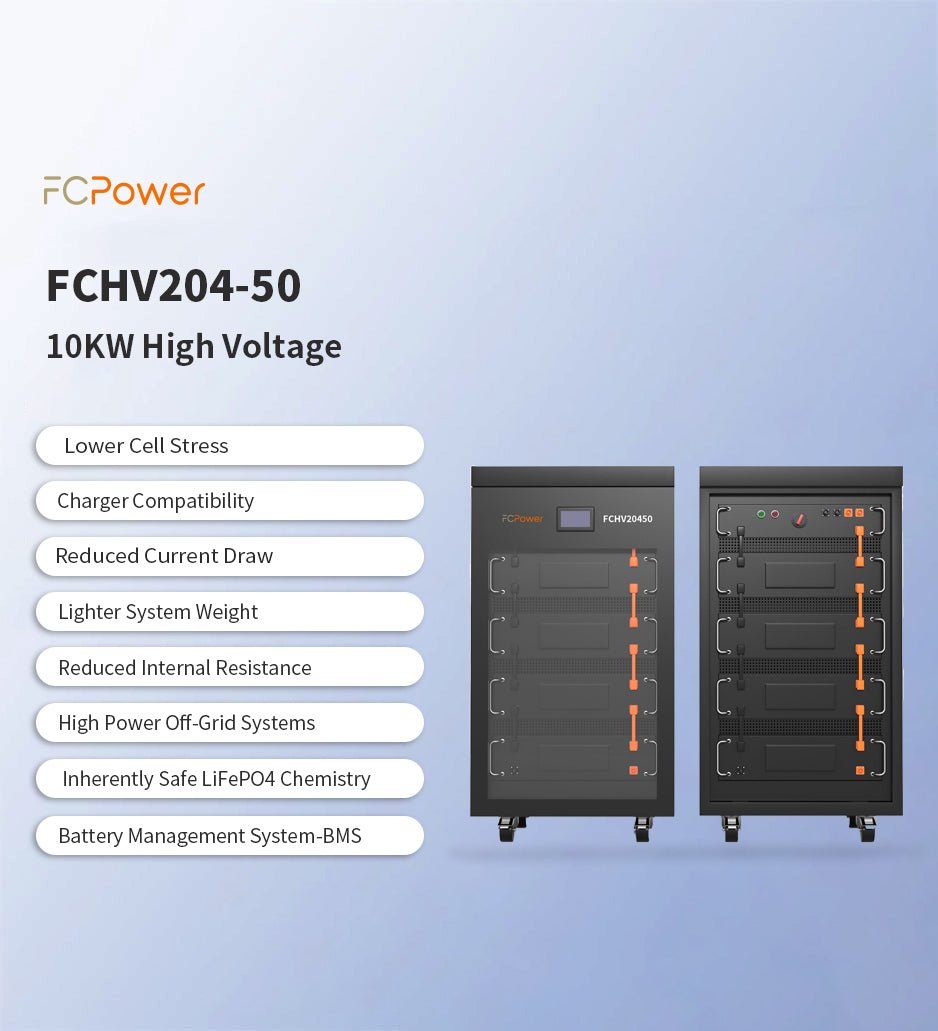

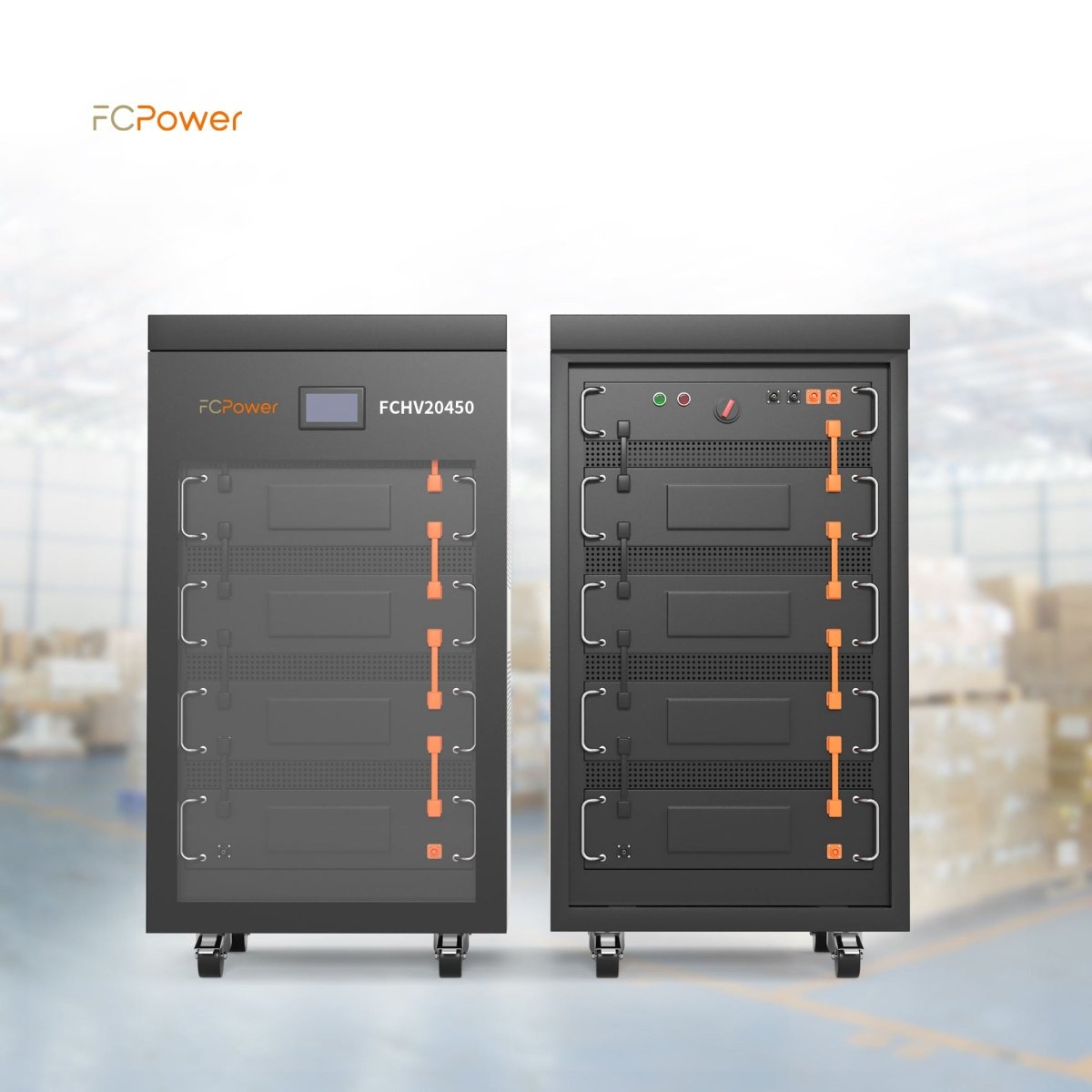

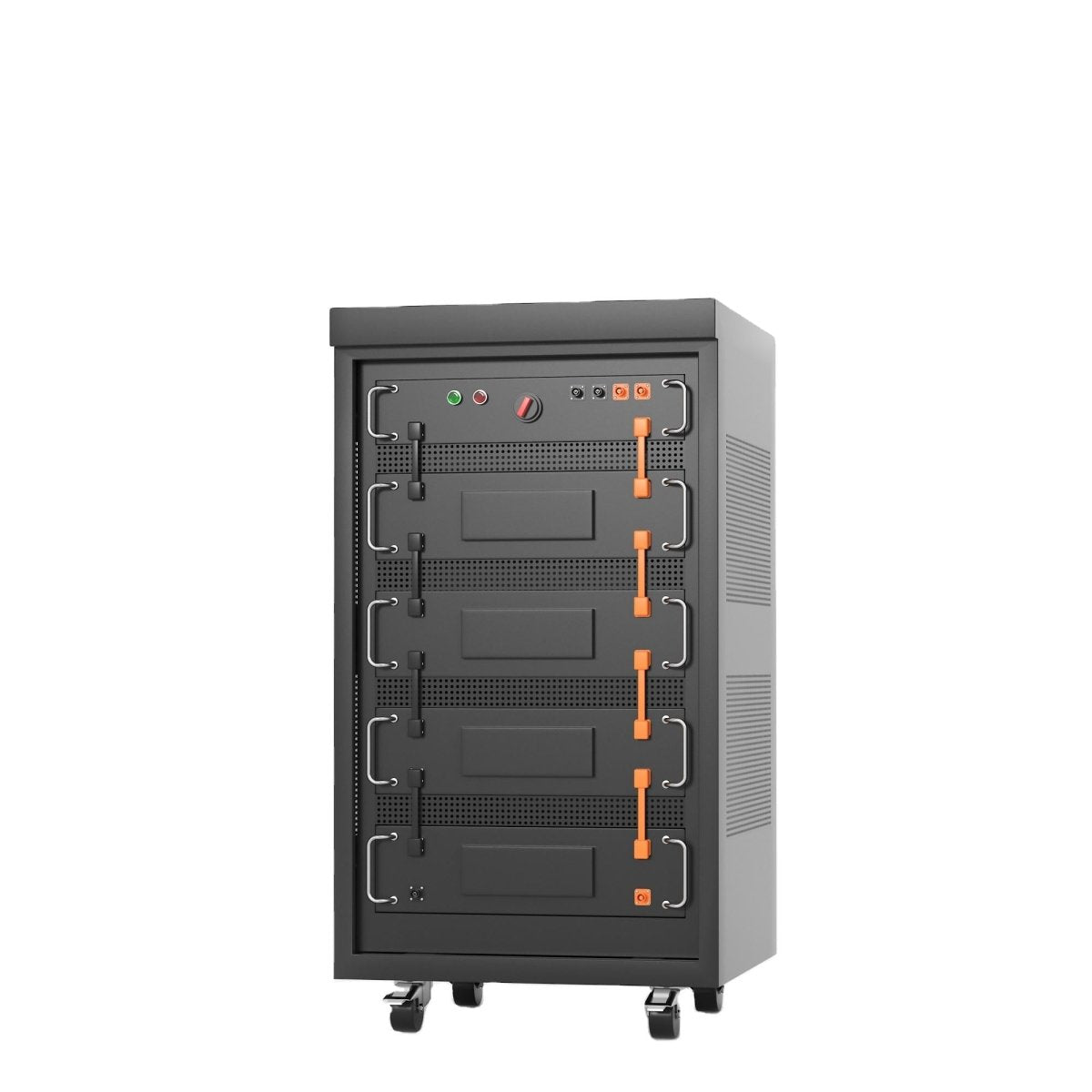

10kWh Rack Mounted High Voltage Battery
With a voltage of 204.8V and a capacity of 50Ah, this rack mounted battery offers powerful performance in a compact footprint. The LiFePO4 battery technology ensures exceptional safety, stability, and durability, providing peace of mind and dependable power for your home or business. Its high energy density and efficient charge-discharge capabilities maximize the benefits of solar energy, ensuring continuous power supply even during extended periods of use.
|
Rated voltage
|
204.8V
|
|||||
|
Working voltage range
|
147.2-233.6V
|
|||||
|
Charge voltage
|
217.6-220.8V
|
|||||
|
Floating charge voltage
|
214.4-217.6V
|
|||||
|
Rated capacity
|
50AH
|
80AH
|
105AH
|
160AH
|
230AH
|
280AH
|
|
Energy
|
10.24KWH
|
16.37KWH
|
21.5KWH
|
32.76KWH
|
47.1KWH
|
57.34KWH
|
|
Rated charge current
|
25A
|
40A
|
50A
|
80A
|
115A
|
140A
|
|
Peak charge current
|
50A
|
80A
|
105A
|
160A
|
230A
|
280A
|
|
Rated discharge current
|
50A
|
80A
|
105A
|
160A
|
230A
|
280A
|
|
Peak discharge current
|
100A
|
160A
|
210A
|
320A
|
460A
|
460A
|
|
Charge temperature
|
0-55℃
|
|||||
|
Discharge temperature
|
-10-55℃
|
|||||
|
Optimum temperature
|
15-25℃
|
|||||
|
Cooling method
|
Natural cooling
|
|||||
|
Relative humidity
|
5%-95%
|
|||||
|
Altitude
|
≤2000M
|
|||||
|
Cycle Life
|
≥8000times@80%DOD，0.5C/0.5C，25℃
|
|||||
|
Communication interfaces
|
CAN2.0/RS485/Dry
|
|||||
|
Protection
|
Over temperature, over current, over-voltage, insulation, and other multiple protection
|
|||||
|
Display
|
LCD
|
|||||
|
Design lifetime
|
≥10 years
|
|||||
|
Certification
|
UN38.3/UL1973/IEC62619
|
|||||
|
Dimension（L*W*H）
|
600*600*1109MM
|
600*600*1287MM
|
600*600*1287MM
|
600*600*1465MM
|
600*660*1643MM
|
600*800*1643MM
|
|
Weight
|
205KG
|
255KG
|
275KG
|
385KG
|
465KG
|
565KG
|
|
Module module
|
51.2V50AH
|
51.2V80AH
|
51.2V105AH
|
51.2V160AH
|
51.2V230AH
|
51.2V280AH
|
|
Serial/Parallel
|
16S1P
|
16S1P
|
16S1P
|
16S1P
|
16S1P
|
16S1P
|
|
Module dimension
|
482.6*416.2*132.5MM
|
482.6*416.2*177MM
|
482.6*416.2*177MM
|
482.6*554*221.5MM
|
482.6*614*265.9MM
|
482.6*754*265.9MM
|
|
Module weight
|
30KG
|
41.5KG
|
46.5KG
|
72KG
|
90KG
|
114KG
|
|
Number of modules
|
4PCS
|
4PCS
|
4PCS
|
4PCS
|
4PCS
|
4PCS
|
|
Battery type
|
LiFePO4
|
LiFePO4
|
LiFePO4
|
LiFePO4
|
LiFePO4
|
LiFePO4
|
The 10kWh rack-mounted high voltage battery with 204.8V 50Ah LiFePO4 chemistry sounds like a great option for residential solar energy storage. Here's a breakdown of its key features and benefits:
Features:
- Capacity: 10kWh - This can provide enough energy to power essential appliances and lights in your home during a power outage for several hours.
- Voltage: 204.8V - High voltage translates to lower energy losses during transfer between the battery and inverter, making the system more efficient.
-
Battery Chemistry: LiFePO4 (Lithium Iron Phosphate) - This is a safe and reliable lithium-ion battery type known for:
- Long lifespan (typically 6,000-10,000 cycles)
- Stable operation with minimal risk of overheating or explosions
- Tolerance for deeper discharges without harming the battery life
Benefits of integrating a 10kWh High-Voltage Energy Storage System with Solar Panels:
- Increased Self-Sufficiency: Store excess solar energy generated during the day and use it at night or on cloudy days, reducing reliance on the grid.
- Peak Shaving: Store solar energy during peak production times and use it during peak grid pricing hours to save money on electricity bills.
- Backup Power: Provides backup power during outages, ensuring essential appliances and lights remain operational.
- Maximizes Solar Energy Usage: Capture and utilize more of your solar energy production, maximizing the return on your investment in solar panels.
Overall, a 10kWh rack-mounted high voltage LiFePO4 battery system is a good option for homeowners looking to enhance their solar energy setup by storing excess energy and gaining greater self-sufficiency.
