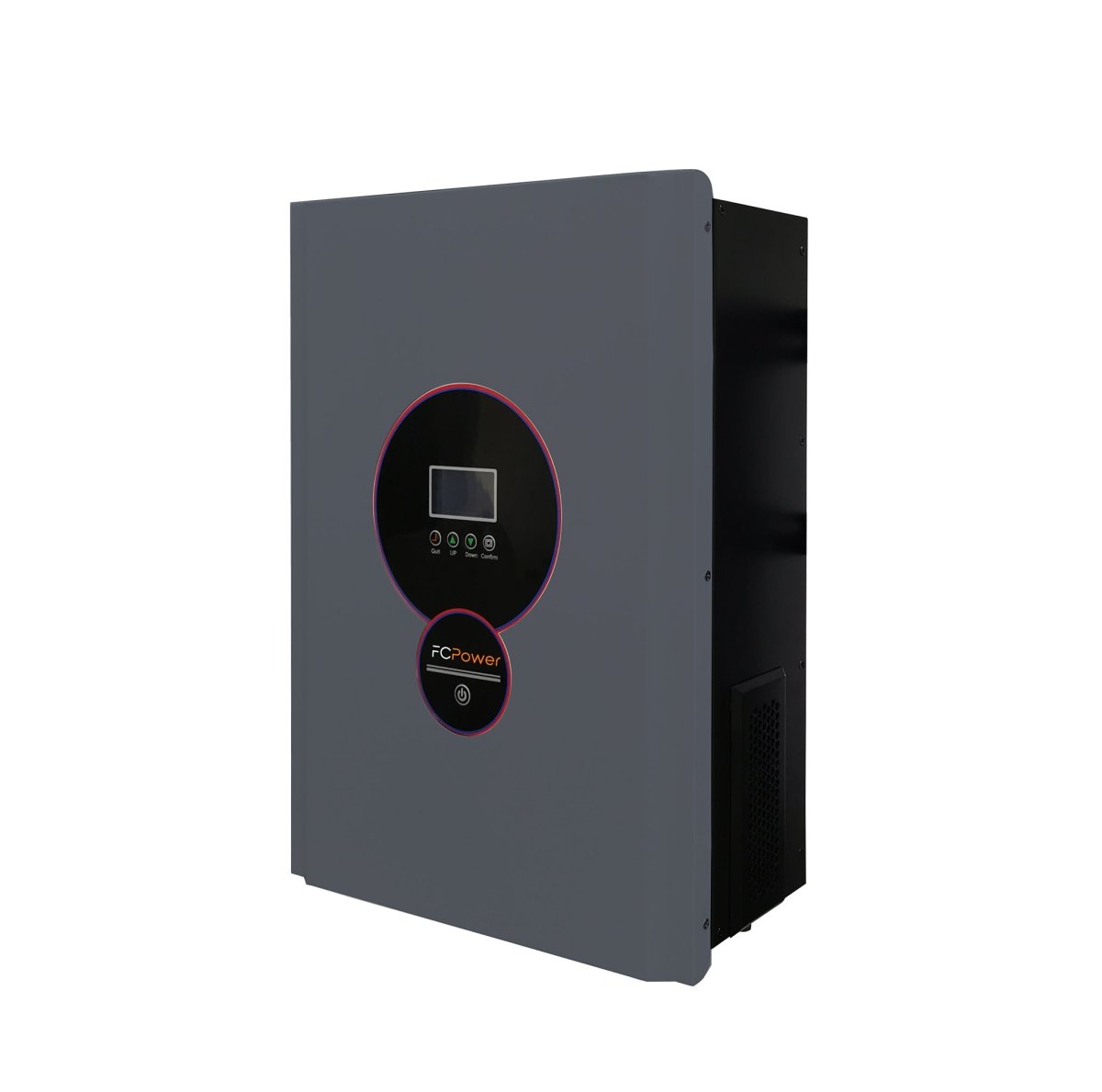

15kW Off-Grid Solar Inverter
The 15kW Off-Grid Solar Inverter is a high-capacity energy solution designed for independent solar power systems. Engineered for homes, farms, and small businesses with significant energy demands, this 15kW off-grid solar inverter efficiently converts solar energy into clean, usable AC power. Whether for complete energy independence or reliable backup power, this inverter is a cornerstone of sustainable, off-grid living.
With its cutting-edge technology, robust construction, and compatibility with 48V battery systems, the 15kW inverter off-grid is ideal for remote areas, off-grid installations, or hybrid systems where grid power is limited or unavailable.
| Technical parameters | |||||
| Inverter with controller mode | FCTO-3.6KW | FCTO-5KW | FCTO-8KW | FCTO-10KW | FCTO-15KW |
| Rated power | 3600W | 5000W | 8000W | 10000W | 15000W |
| Battery voltage | 48V | ||||
| Size:(L*W*Hmm) | 502*400*168 | 620*390*210 | 700*440*210 | 900*600*450 | |
| package size(L*W*Hmm) | 630*485*260 | 690*460*380 | 770*510*380 | 970*670*620 | |
| N.W.(KG) | 25 | 47 | 54 | 65 | 90 |
| G.W.(KG) | 27 | 56 | 64 | 77 | 102 |
| Input | |||||
| Phase | L+N+G | ||||
| AC input range | 220V:170-275VAC | ||||
| Input frequency | 45Hz～65Hz | ||||
| Output | |||||
| Output voltage | inverter mode:220V±5%;AC mode:220VAC±10%; | ||||
| Frequency range (AC mode) | inverter mode:220V±5%;AC mode:220VAC±10%; | ||||
| Frequency range (inverter mode) | 50Hz/60Hz±1% | ||||
| Over load capacity | AC mode:(100%～110%:10min;110%～130%:1min;>130%:1s;)) | ||||
| inverter mode:(100%～110%:30s;110%～130%:10s;>130%:1s;) | |||||
| Peak current ratio | 3:1max | ||||
| Conversion time | <10ms(Typical loads) | ||||
| Waveform | Pure sine wave | ||||
| Efficiency | >85%(80% resistive loads) | ||||
| Protection functions | Battery overvoltage protection,battery undervoltage protection,overload protection, short circuit protection,overtemperature protection,etc. |
||||
| built in solar charge controller(adjust) | |||||
| Max charge current | 60A | 80A | 100A | 120A | |
| Battery voltage | 48V | ||||
| PV input voltage range | 48V:65V-150V; | ||||
| Max PV input | 2880W | 3840W | 4800W | 5760W | |
| Cooling method | Fans cooling | ||||
| Environmental conditions | |||||
| Operating temperature | 0℃-40℃ （Battery life decreases at ambient temperatures above 25 degrees Celsius） |
||||
| Operation humidity | <95%（without condesing) | ||||
| Operating altitude | <1000m(with increase of 100m,it will reduce output of 1%) max5000m | ||||
| Noise | <58dB(distance to machine 1m) | ||||
| Management | |||||
| Display | LCD+LED | ||||
| Computer communication interface | RS485 | ||||
| *The above data is for reference. If there is any change, please refer to the real object. | |||||
Key Features and Benefits
1. High Power Output for Large Loads
Capable of delivering 15kW of continuous power, this off-grid power inverter can handle demanding electrical loads, including large appliances, industrial equipment, and commercial operations. Its capacity makes it an ideal solution for high-energy consumption needs.
2. Advanced High-Frequency Technology
The high-frequency off-grid solar inverter design ensures compact size, lightweight construction, and enhanced energy efficiency. This technology minimizes energy losses and delivers consistent, stable power output for a variety of applications.
3. 48V DC Input for Flexible Energy Systems
The 48V off-grid inverter is designed to integrate seamlessly with 48V battery banks, allowing for flexible configurations in solar power systems. This voltage standard ensures compatibility with widely available components in off-grid setups.
4. Battery-Free Operation Option
For users seeking to minimize upfront costs, this off-grid solar inverter without battery can operate directly from solar panels during the day, eliminating the need for batteries while ensuring consistent energy delivery in sunny conditions.
5. Pure Sine Wave Output for Sensitive Equipment
The pure sine wave output provides clean, stable power that is safe for sensitive electronics, including computers, medical devices, and high-end appliances. This feature ensures longevity and reliability for connected devices.
6. Comprehensive Safety Features
The 15kW off-grid inverter includes multiple safety mechanisms to protect the inverter, batteries, and connected devices:
- Overload protection
- Short circuit protection
- Over-temperature protection
- Battery overcharge and discharge protection
7. Smart Monitoring and Control
This 15kW solar inverter off-grid features a user-friendly display for real-time monitoring of system performance. Advanced models may also offer remote monitoring through mobile apps or web interfaces, enabling users to track energy usage and system health from anywhere.
8. Durable and Weather-Resistant Design
Built for durability, the off-grid solar inverter 15kW is constructed with high-quality materials to withstand harsh environments. Its rugged design ensures long-lasting performance, even in extreme weather conditions.
Applications
1. Large Residential Off-Grid Systems
For large homes with significant energy demands, the 15kW off-grid solar inverter provides reliable power for lighting, appliances, HVAC systems, and more.
2. Agricultural and Commercial Use
This off-grid inverter 15kW is ideal for farms, workshops, and small businesses, powering irrigation systems, machinery, and essential equipment.
3. Backup Power Solutions
The 15kW inverter off-grid serves as an excellent backup power source, ensuring uninterrupted electricity during grid outages.
4. Solar Energy Systems
As a core component of solar setups, the off-grid solar inverter 15kW efficiently converts solar energy and manages energy storage in battery banks for long-term reliability.
5. Hybrid Systems
For users transitioning to renewable energy, this off-grid on-grid inverter can be integrated into hybrid systems, providing flexibility between grid and solar power sources.
Advantages of the 15kW Off-Grid Solar Inverter
1. Energy Independence
With the 15kW off-grid solar inverter, users can enjoy complete energy independence, reducing reliance on traditional electricity providers and enabling sustainable living.
2. Eco-Friendly Solution
This inverter is a key part of renewable energy systems, promoting environmental sustainability by reducing carbon emissions and utilizing clean solar energy.
3. Scalable and Customizable
The 15kW off-grid inverter supports large-scale energy systems and can be expanded with additional inverters or components to meet growing energy needs.
4. Cost-Effective and Long-Lasting
By optimizing solar energy usage, this inverter helps reduce electricity bills over time. Its durable construction ensures years of reliable performance.
5. Global Support from Trusted Manufacturers
As a product from leading off-grid solar inverter manufacturers, the inverter comes with reliable technical support, warranty coverage, and easy access to replacement parts.
Why Choose This Off-Grid Solar Inverter?
1. High Performance for Demanding Applications
The 15kW off-grid solar inverter is designed to handle large loads and demanding applications, making it suitable for residential, commercial, and industrial use.
2. Advanced Features for Modern Energy Systems
From high-frequency technology to smart monitoring capabilities, this inverter offers features that ensure optimal performance and convenience.
3. Robust Safety Measures
The inverter includes comprehensive protection mechanisms, safeguarding your investment and ensuring the safety of your energy system.
4. Compatibility with Solar and Battery Systems
The 48V off-grid inverter integrates seamlessly with a variety of solar panels and battery banks, providing flexibility for diverse energy setups.
5. Proven Reliability
Supported by industry-leading off-grid inverter manufacturers, this inverter is built to meet global quality standards, ensuring reliable performance in any environment.
Use Cases
- Independent Solar Homes: Power entire households with high energy demands.
- Remote Farms and Businesses: Support agricultural and commercial operations with reliable energy.
- Emergency Power Backup: Ensure critical systems remain operational during outages.
- Renewable Energy Systems: Enhance solar setups with efficient energy conversion and storage.
Conclusion
The 15kW Off-Grid Solar Inverter is a powerful, efficient, and reliable solution for demanding energy applications. Its advanced features, robust construction, and compatibility with various energy components make it a versatile choice for residential, commercial, and industrial use.
Whether you're establishing a new solar setup, upgrading an existing system, or seeking a dependable backup power source, the 15kW off-grid solar inverter delivers exceptional performance and long-term value. Choose this inverter for a sustainable, energy-independent future.
