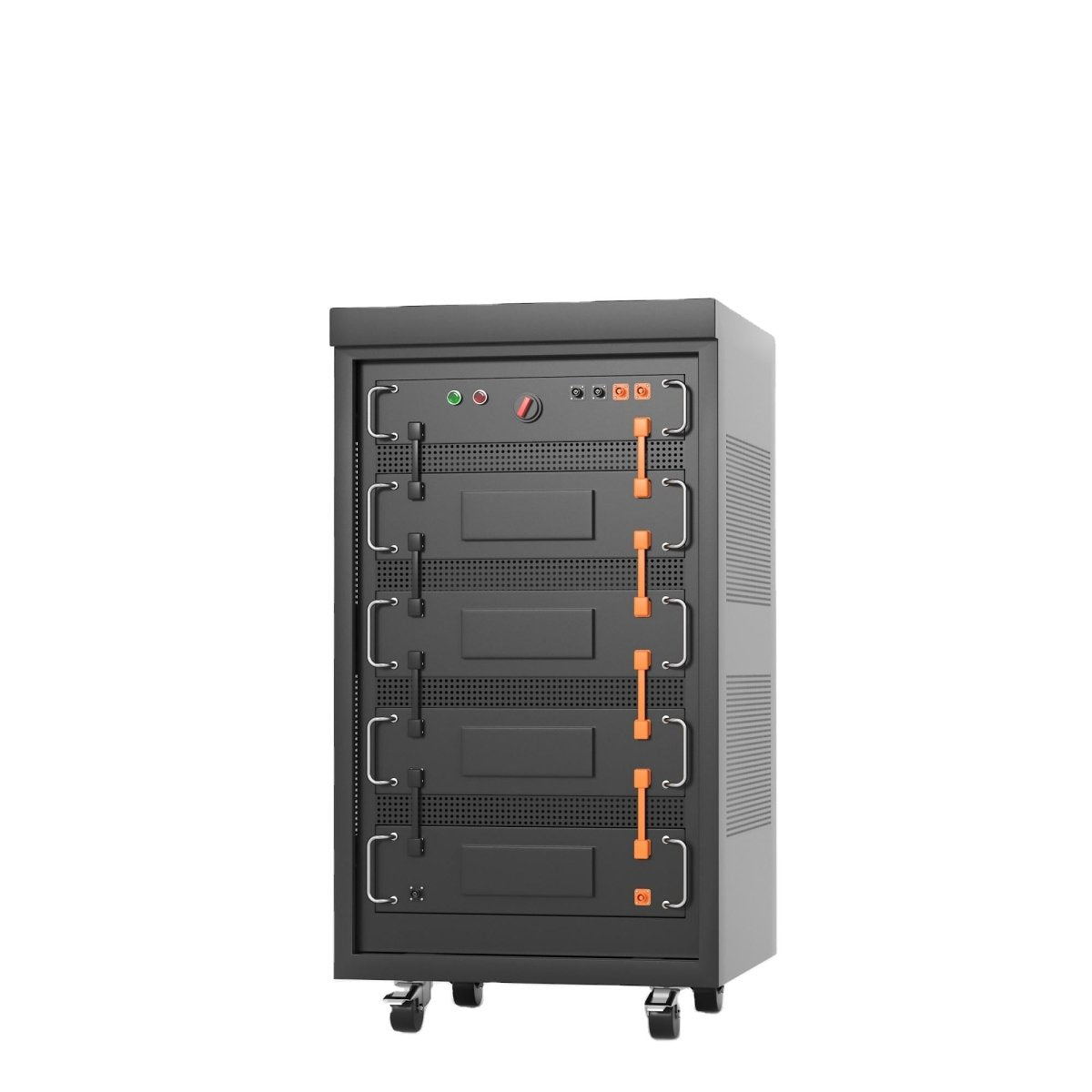

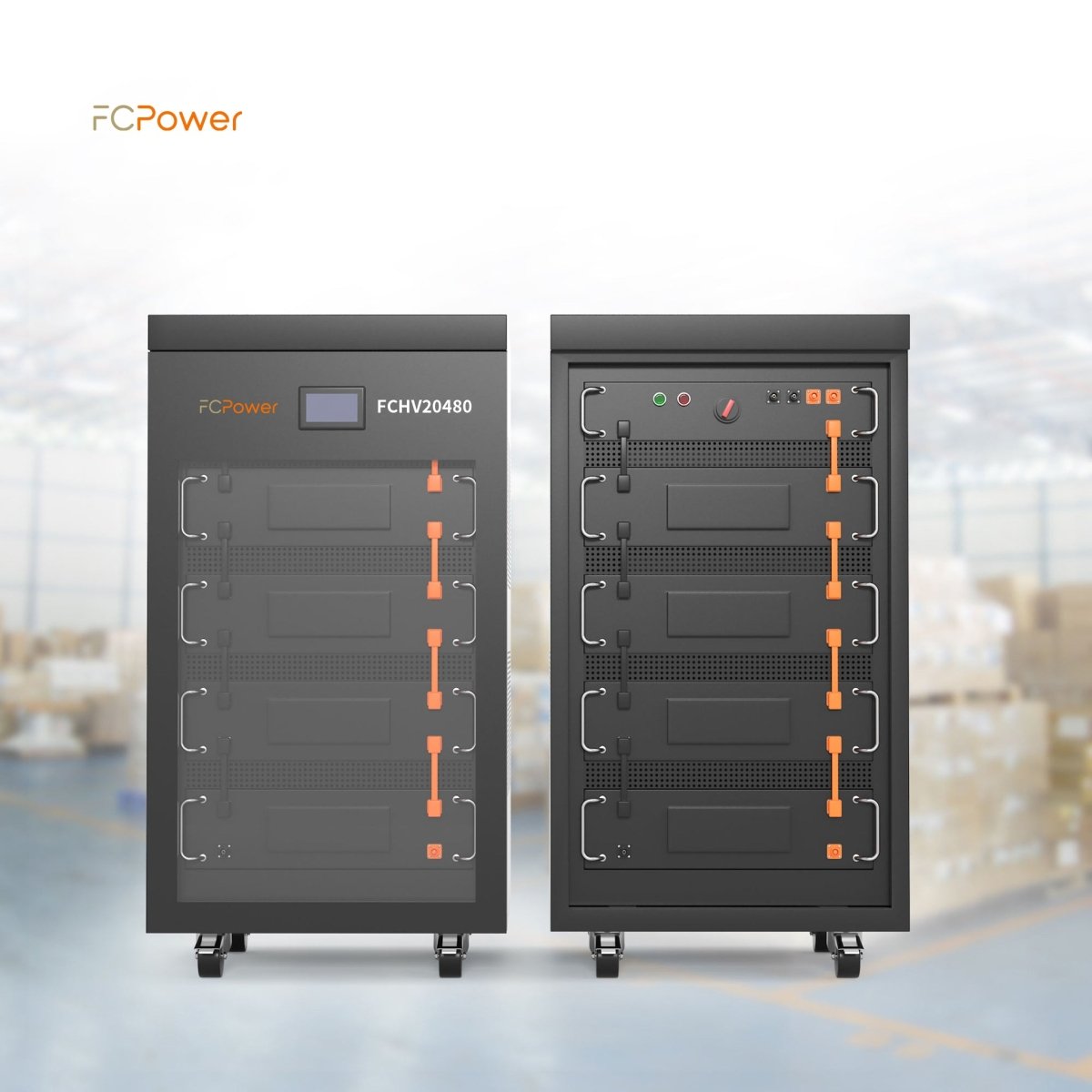

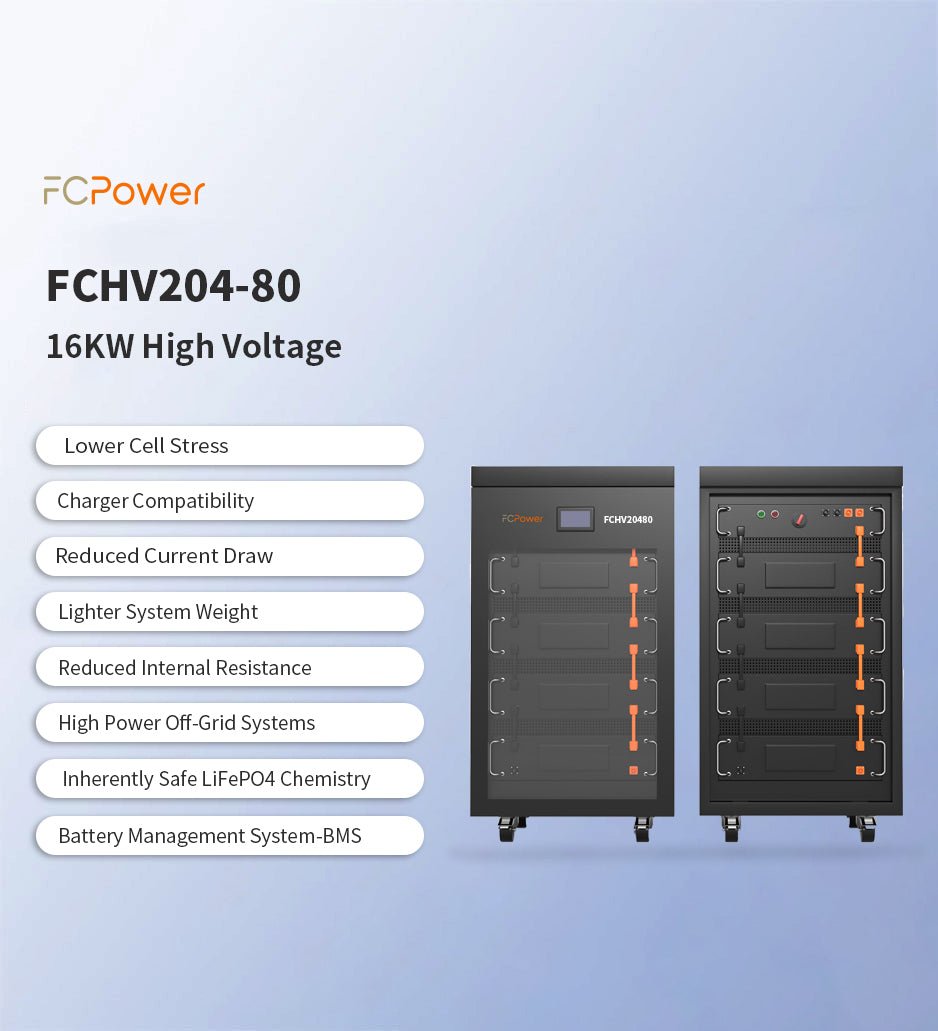

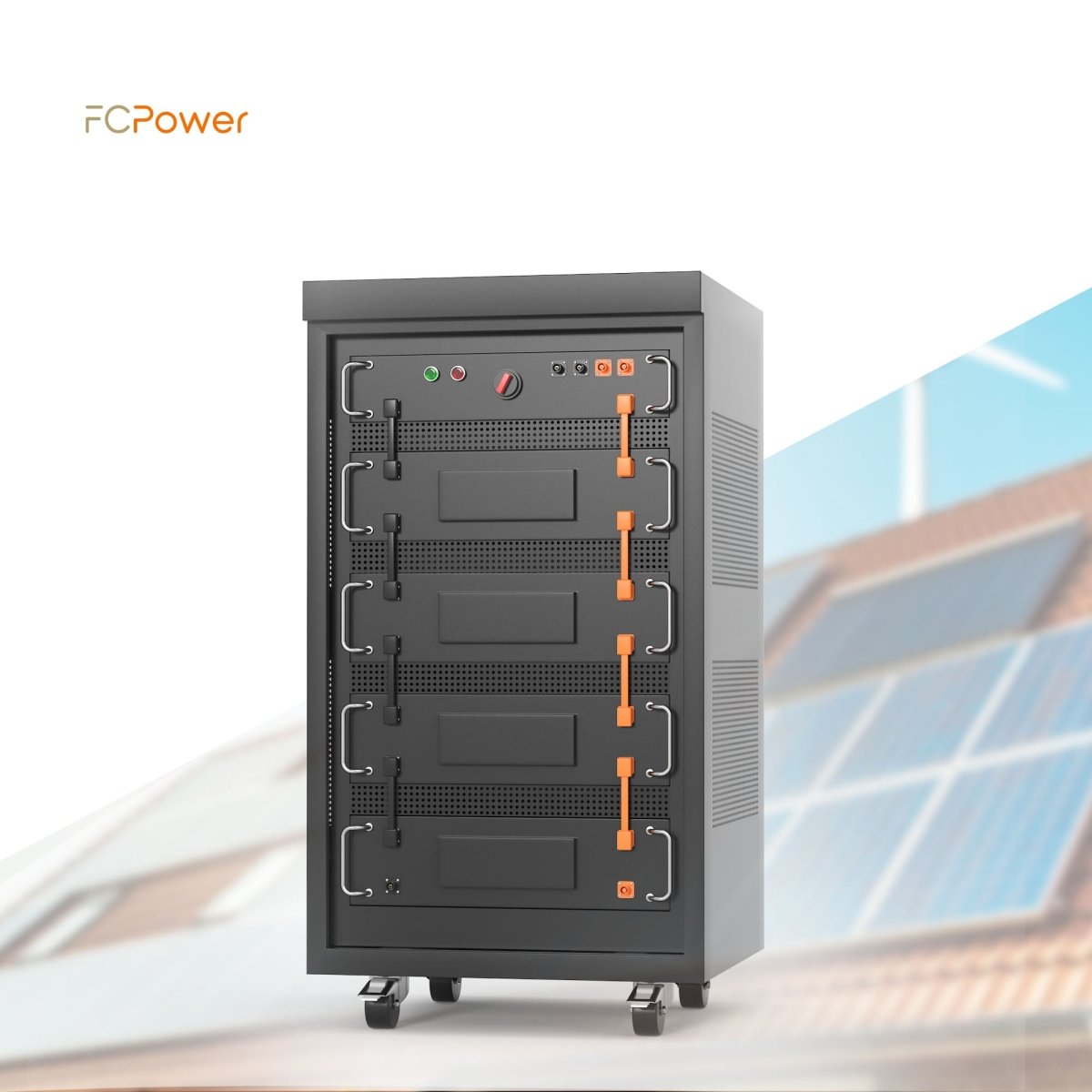

16kWh Rack Mounted High Voltage Battery
16kWh Rack Mounted High Voltage Battery, featuring a reliable 204.8V 80Ah LiFePO4 battery, designed to optimize solar energy utilization. Seamlessly integrate this innovative solution with your solar energy system to capture, store, and utilize solar power efficiently. Reduce your reliance on the grid, lower your energy bills, and enjoy an uninterrupted power supply day and night with this powerful and efficient energy storage solution.
|
Rated voltage
|
204.8V
|
|||||
|
Working voltage range
|
147.2-233.6V
|
|||||
|
Charge voltage
|
217.6-220.8V
|
|||||
|
Floating charge voltage
|
214.4-217.6V
|
|||||
|
Rated capacity
|
50AH
|
80AH
|
105AH
|
160AH
|
230AH
|
280AH
|
|
Energy
|
10.24KWH
|
16.37KWH
|
21.5KWH
|
32.76KWH
|
47.1KWH
|
57.34KWH
|
|
Rated charge current
|
25A
|
40A
|
50A
|
80A
|
115A
|
140A
|
|
Peak charge current
|
50A
|
80A
|
105A
|
160A
|
230A
|
280A
|
|
Rated discharge current
|
50A
|
80A
|
105A
|
160A
|
230A
|
280A
|
|
Peak discharge current
|
100A
|
160A
|
210A
|
320A
|
460A
|
460A
|
|
Charge temperature
|
0-55℃
|
|||||
|
Discharge temperature
|
-10-55℃
|
|||||
|
Optimum temperature
|
15-25℃
|
|||||
|
Cooling method
|
Natural cooling
|
|||||
|
Relative humidity
|
5%-95%
|
|||||
|
Altitude
|
≤2000M
|
|||||
|
Cycle Life
|
≥8000times@80%DOD，0.5C/0.5C，25℃
|
|||||
|
Communication interfaces
|
CAN2.0/RS485/Dry
|
|||||
|
Protection
|
Over temperature, over current, over-voltage, insulation, and other multiple protection
|
|||||
|
Display
|
LCD
|
|||||
|
Design lifetime
|
≥10 years
|
|||||
|
Certification
|
UN38.3/UL1973/IEC62619
|
|||||
|
Dimension（L*W*H）
|
600*600*1109MM
|
600*600*1287MM
|
600*600*1287MM
|
600*600*1465MM
|
600*660*1643MM
|
600*800*1643MM
|
|
Weight
|
205KG
|
255KG
|
275KG
|
385KG
|
465KG
|
565KG
|
|
Module module
|
51.2V50AH
|
51.2V80AH
|
51.2V105AH
|
51.2V160AH
|
51.2V230AH
|
51.2V280AH
|
|
Serial/Parallel
|
16S1P
|
16S1P
|
16S1P
|
16S1P
|
16S1P
|
16S1P
|
|
Module dimension
|
482.6*416.2*132.5MM
|
482.6*416.2*177MM
|
482.6*416.2*177MM
|
482.6*554*221.5MM
|
482.6*614*265.9MM
|
482.6*754*265.9MM
|
|
Module weight
|
30KG
|
41.5KG
|
46.5KG
|
72KG
|
90KG
|
114KG
|
|
Number of modules
|
4PCS
|
4PCS
|
4PCS
|
4PCS
|
4PCS
|
4PCS
|
|
Battery type
|
LiFePO4
|
LiFePO4
|
LiFePO4
|
LiFePO4
|
LiFePO4
|
LiFePO4
|
- Increased Capacity (16kWh): Compared to a 10kWh system, this battery offers 60% more storage capacity, allowing you to power your home's essentials for longer durations during outages or on low-sun days.
- High Voltage (204.8V): Maintains efficient energy transfer between the battery and inverter due to lower energy losses.
-
Reliable LiFePO4 Battery: This lithium-ion chemistry offers:
- Extended lifespan (6,000-10,000 cycles) for years of dependable use.
- Inherent stability, minimizing the risk of overheating or explosions for safe operation.
- Deep discharge tolerance, allows you to utilize more of the battery's capacity without impacting its lifespan.
Benefits of Integrating a 16kWh High-Voltage System with Solar Panels:
- Enhanced Self-Sufficiency: Store more solar energy for increased reliance on your renewable power source, reducing dependence on the grid.
- Strategic Peak Shaving: Store excess solar energy during peak production and strategically use it during peak grid pricing hours to maximize cost savings on electricity bills.
- Improved Backup Power: Provides extended backup power during outages, ensuring critical appliances and potentially even some high-wattage electronics remain operational for longer.
- Optimized Solar Energy Usage: Capture and utilize more of your solar energy generation, maximizing the return on your investment in solar panels.
Overall, a 16kWh rack-mounted high voltage LiFePO4 battery system is a well-suited option for homeowners who want to significantly increase their self-sufficiency and power critical appliances during outages. The higher capacity provides more usable energy compared to a 10kWh system, making it ideal for residences with moderate to high energy consumption.
