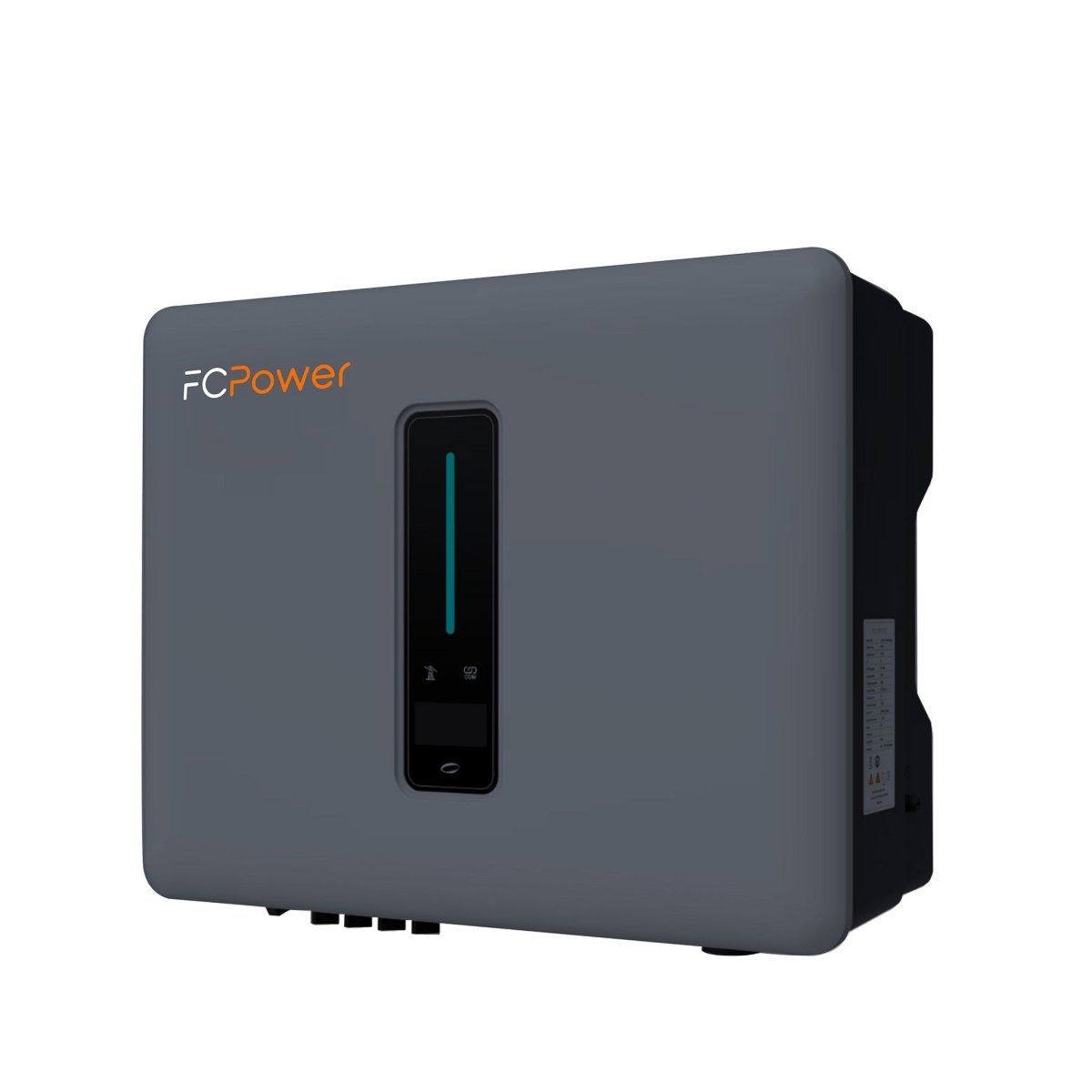

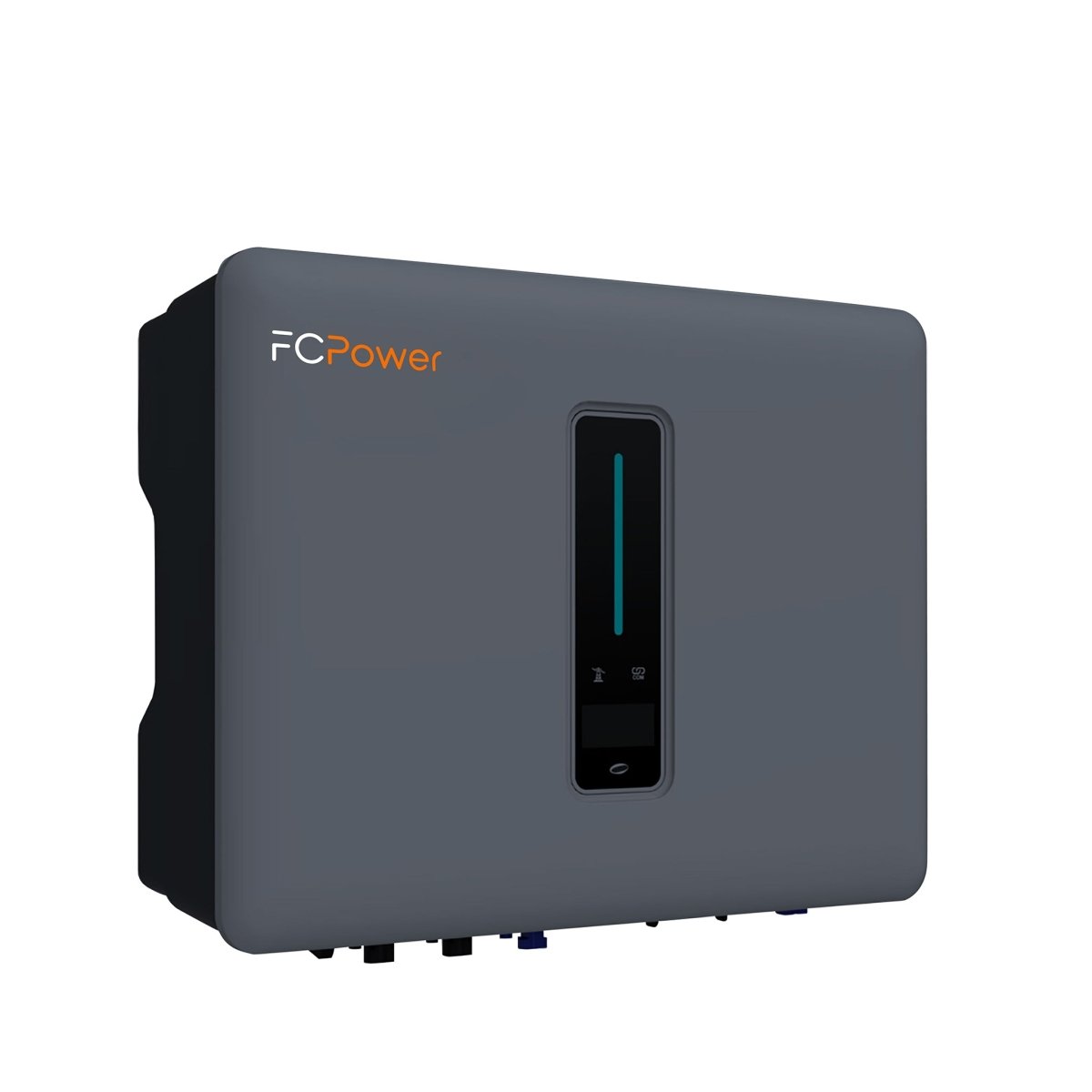

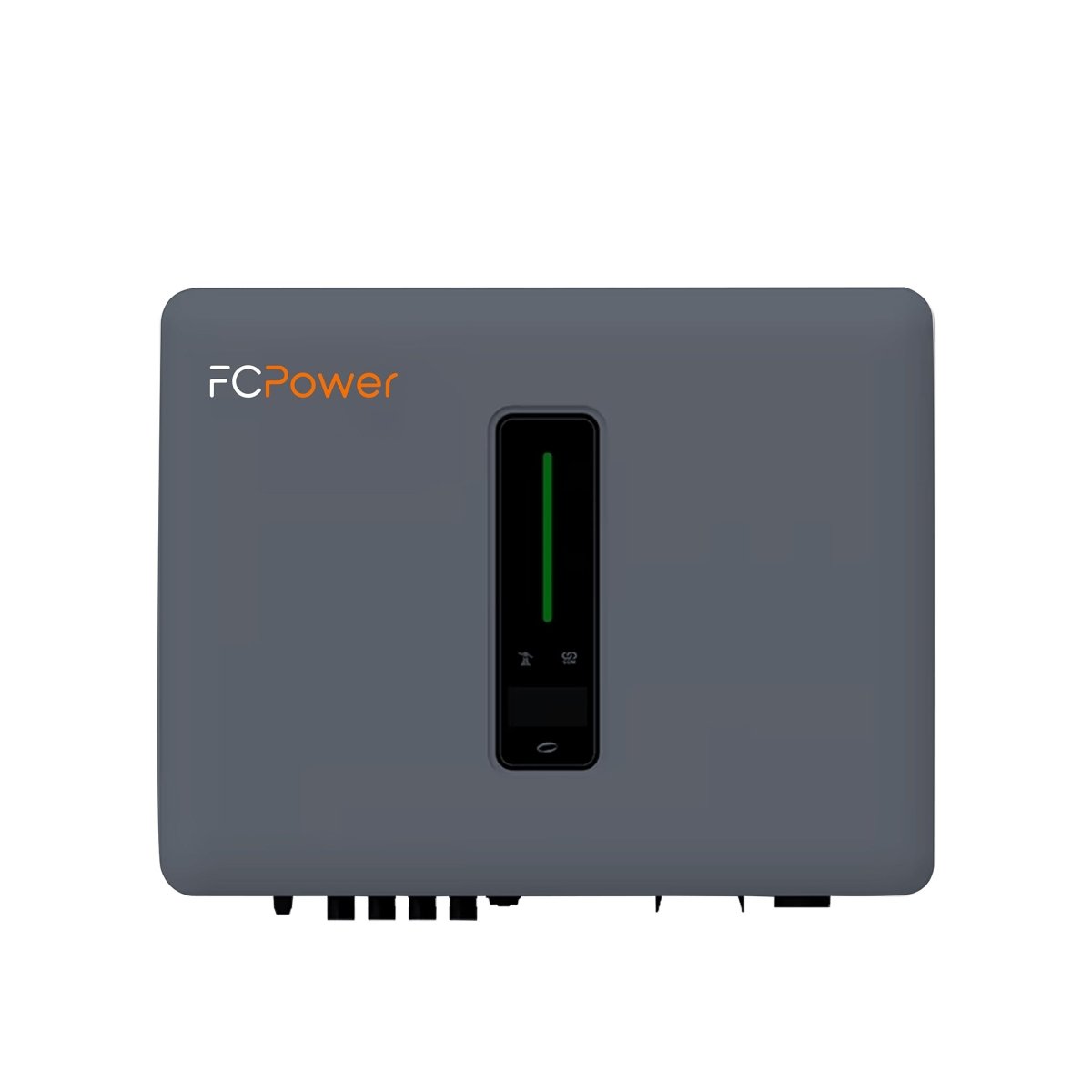

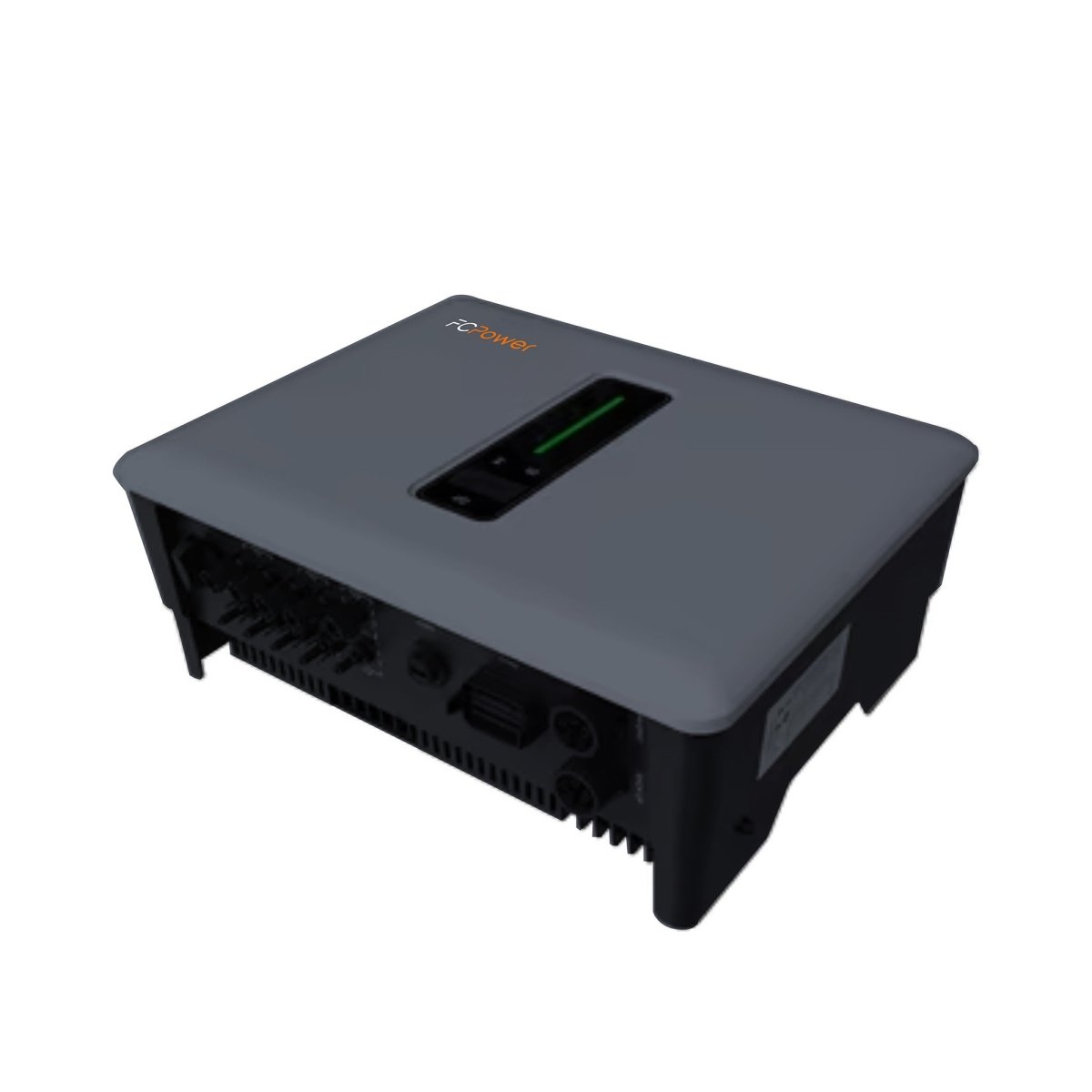

20kW Hybrid Solar Power Inverter

The 20kW Hybrid Solar Power Inverter is a premium solution for high-capacity energy systems, offering outstanding performance, reliability, and versatility. This inverter is specifically designed for large residential properties, commercial establishments, and industrial setups, integrating solar power, grid energy, and battery storage for efficient energy management. With the ability to seamlessly adapt to various power scenarios, the 20kW solar inverter ensures continuous energy supply while optimizing solar power usage.

Technical Specifications

Model FCTH-10KW-40 FCTH-12KW-40 FCTH-15KW-40 FCTH-20KW-40
PV Input
Recommended Max.input Power[kw] 15 18 22.5 30
Start-up Voltage[V] 135 135 135 135
Max. DC Input Voltage*[V] 1000* 1000* 1000* 1000*
Rated DC Input Voltage[V] 620 620 620 620
MPPT Voltage Range*[V] 200-950* 200-950* 200-950* 200-950*
No. of MPP Trackers 2 2 2 2
No. of DC inputs per MPPT 2/2 2/2 2/2 2/2
Max.Input Current[A] 30/40 30/40 30/40 30/40
Max. Short-circuit Current[A] 40/40 40/40 40/40 40/40
Battery Side
Battery Type Lithium Battery (with BMS)
Battery Voltage Range[V] 135-750
Maximum Charging/Discharge Current[A] 40/40
Grid Side
Rated Output Power[kw] 10 12 15 20
Max.OutputApparent Power[kVA] 11 13.2 16.5 22
Max.Input Apparent Power[kVA] 20 24 30 30
Max. Charging Power of Battery[kw] 10 12 15 20
Rated AC Voltage[V] 3L/N/PE; 220/380V;230/400V;240/415V
Rated AC Frequency[HZ] 50/60
Max.Output Current[A] 16.5 20 25 33.5
Power Factor 0.8 leading ...0.8 lagging
Max. Total Harmonic Distortion <3% @Rated output power
DCI <0.5%In
Back-up Side
Rated Output Power[kw] 10 12 15 20
Max. Output Apparent Power[kVA] 11 13.2 16.5 22
Max. Output Current[A] 16.5 20 25 33.5
On/Off-grid Switching Time[ms] <10ms
Rated Output Voltage[V] 3L/N/PE; 220/380V;230/400V;240/415V
Rated Output Frequency[HZ] 50/60
Voltage Harmonic Distortion <3% @Linear load
Efficiency
Max. Efficiency 98.40% 98.40% 98.40% 98.40%
European Efficiency 97.50% 97.50% 97.50% 97.50%
Protection
Integrated Protection DC reverse polarity protection / Battery input reverse connection protection /Insulation resistance protection/Surge protection/Over-temperature protection /Residual current protection/Islanding protection/AC over-voltage protection /Overload protection/AC short-circuit protection
General Data
Over Voltage Category PV: ll Main: ll
Dimensions[W*H*D mm] 534x418x210
Weight[KG] 28.0 (10-12kW)/31.0 (15-20kW)
Protection Degree IP65
Standby Self-Consumption[W] <15
Topology Transformerless
OperatingTemperature Range[°C] -30°-60°
Relative Humidity[%] 0-100
Operating Altitude[m] 3000 (>3000m Derating)
Cooling Smart fan
Noise Level[dB] <40
Display OLED & LED
Communication CAN,RS485, WiFi/LAN (Optional)

Key Features of the 20kW Hybrid Solar Power Inverter

1. Exceptional Efficiency

The 20kW hybrid inverter is equipped with state-of-the-art MPPT (Maximum Power Point Tracking) technology, maximizing solar energy conversion efficiency to an impressive 98%. This ensures minimal energy loss, allowing you to make the most of your solar installation and reduce dependency on traditional power sources.

2. Advanced Hybrid Functionality

This hybrid inverter 20kW is designed to intelligently balance solar power, grid energy, and battery storage. The system prioritizes solar energy for direct use, charges batteries with surplus solar power, and draws grid electricity only when required. This intelligent functionality minimizes energy waste and reduces electricity bills.

3. Multiple Operation Modes

The inverter hybrid 20kW offers various modes to meet diverse energy needs:

  • Self-Consumption Mode: Prioritizes solar energy for on-site use, storing excess power in batteries.
  • Backup Mode: Delivers reliable power during outages.
  • Grid-Tied Mode: Supports feeding excess energy into the grid for added financial benefits.
  • Off-Grid Mode: Enables fully independent operation in remote or grid-challenged locations.

4. Enhanced Battery Compatibility

The 20kW hybrid solar inverter supports multiple battery technologies, including lithium-ion, lead-acid, and gel batteries. Its advanced battery management system optimizes charge cycles, safeguards battery health, and ensures long-term reliability.

5. High Scalability and Flexibility

The 20kW hybrid solar inverter is designed for adaptability. Its parallel operation capability allows for expansion, making it a versatile solution for growing energy demands. Whether for residential, commercial, or industrial applications, this inverter provides a tailored solution for your energy needs.

6. Smart Monitoring and Control

Stay in control of your energy system with the 20kW solar hybrid inverter's remote monitoring features. Accessible via mobile apps and web platforms, you can track energy production, consumption, and system performance in real time. Its user-friendly interface simplifies management, empowering you to optimize energy usage.

7. Robust and Durable Construction

Built for endurance, the 20kW hybrid inverter features a rugged design with an IP65-rated enclosure, providing protection against dust and water. Its fan-less cooling system ensures silent operation while reducing wear and tear, ensuring reliable performance even in harsh environments.

Benefits of the 20kW Hybrid Solar Power Inverter

1. Energy Independence

The 20kW solar inverter empowers you to reduce reliance on the grid by harnessing the power of the sun and optimizing energy storage. This energy independence ensures stability and long-term savings.

2. Eco-Friendly Energy Solution

The 20kW hybrid solar inverter enables you to transition to renewable energy, significantly reducing carbon emissions. It’s a sustainable choice for eco-conscious homeowners and businesses.

3. Cost-Effective Power Management

The inverter hybrid 20kW helps lower energy costs by maximizing solar usage, reducing grid consumption, and ensuring efficient battery use. Over time, this leads to significant financial savings.

4. Reliable Backup Power

With its robust backup functionality, the 20kW hybrid solar inverter ensures uninterrupted power during outages, protecting critical appliances and operations.

5. Scalable for Future Growth

The 20kW hybrid inverter supports parallel installations, allowing you to expand your energy system as your needs grow. This scalability makes it a future-proof solution.

6. Enhanced Property Value

Installing the 20kW hybrid solar inverter increases the value of your property by integrating a high-performance energy system that is both sustainable and efficient.


Applications of the 20kW Hybrid Solar Power Inverter

  • Large Residential Homes: Provides reliable power for high-energy households with multiple appliances and devices.
  • Commercial Establishments: Ideal for offices, retail outlets, and hospitality businesses seeking efficient energy solutions.
  • Industrial Sites: Supports small to medium industrial operations with high energy demands.
  • Remote Locations: Delivers off-grid energy solutions for rural areas, farms, and remote facilities.
  • Community Projects: Suitable for shared solar energy systems in housing developments or co-operatives.

Why Choose Our 20kW Hybrid Solar Power Inverter?

  • Superior Performance: High conversion efficiency and intelligent energy management ensure optimal performance.
  • Reliable Support: Backed by a professional support team offering installation guidance, maintenance, and warranty services.
  • Eco-Friendly Design: Built to promote renewable energy adoption, reducing your carbon footprint.
  • Affordable and Accessible: Combines advanced technology with competitive pricing, making it an excellent investment.

Getting Started with the 20kW Hybrid Solar Power Inverter

Upgrading your energy system to the 20kW Hybrid Solar Power Inverter is a step toward smarter energy management and a greener future. Contact our team today for personalized recommendations, installation assistance, and a detailed quote. Let us help you build a reliable and sustainable energy system tailored to your needs.


The 20kW Hybrid Solar Power Inverter is a high-capacity, intelligent energy solution designed to meet the demands of modern homes and businesses. By integrating solar energy, battery storage, and grid power seamlessly, it delivers unmatched efficiency, reliability, and cost savings. Take control of your energy future with the 20kW solar hybrid inverter—a powerful, sustainable choice for today and tomorrow.
