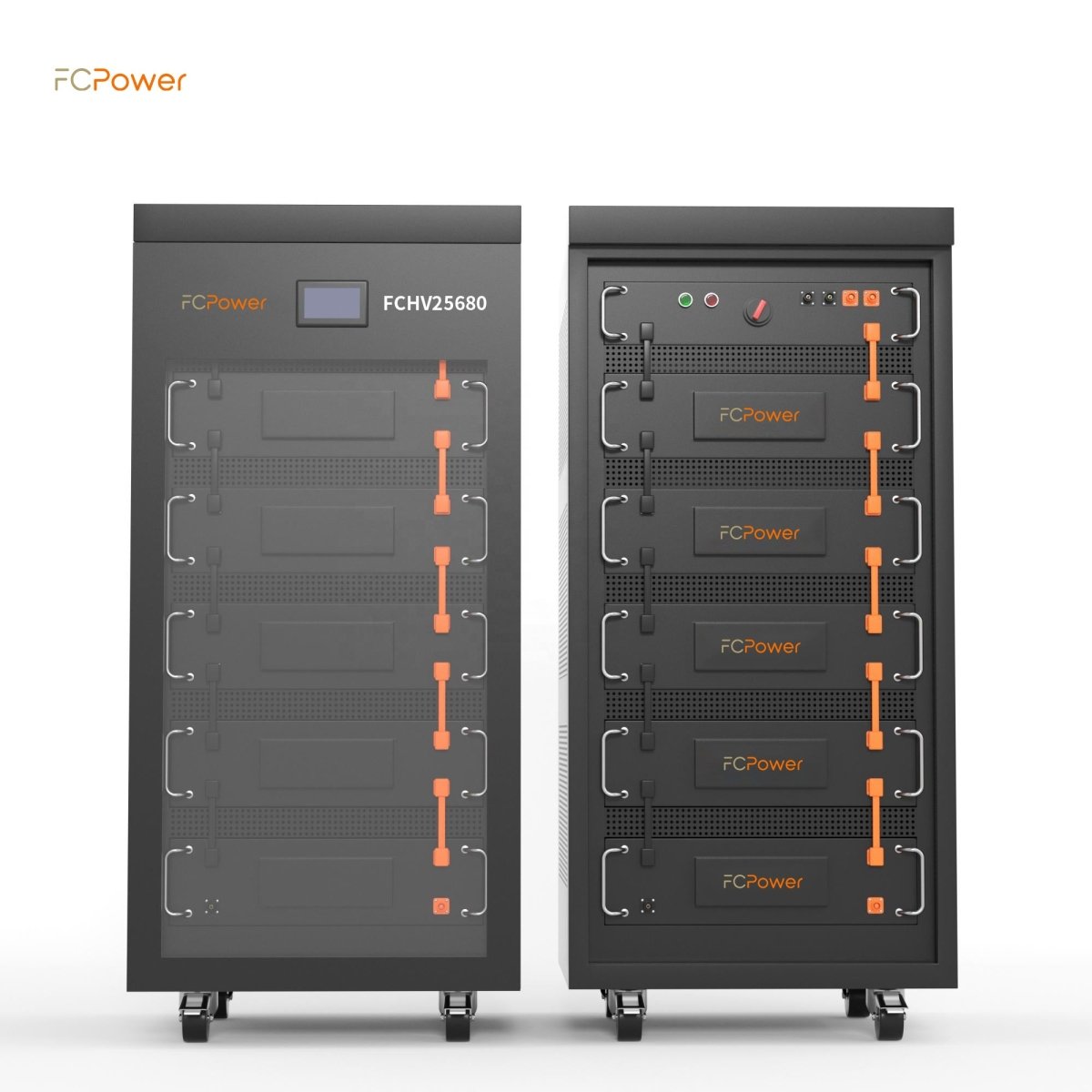

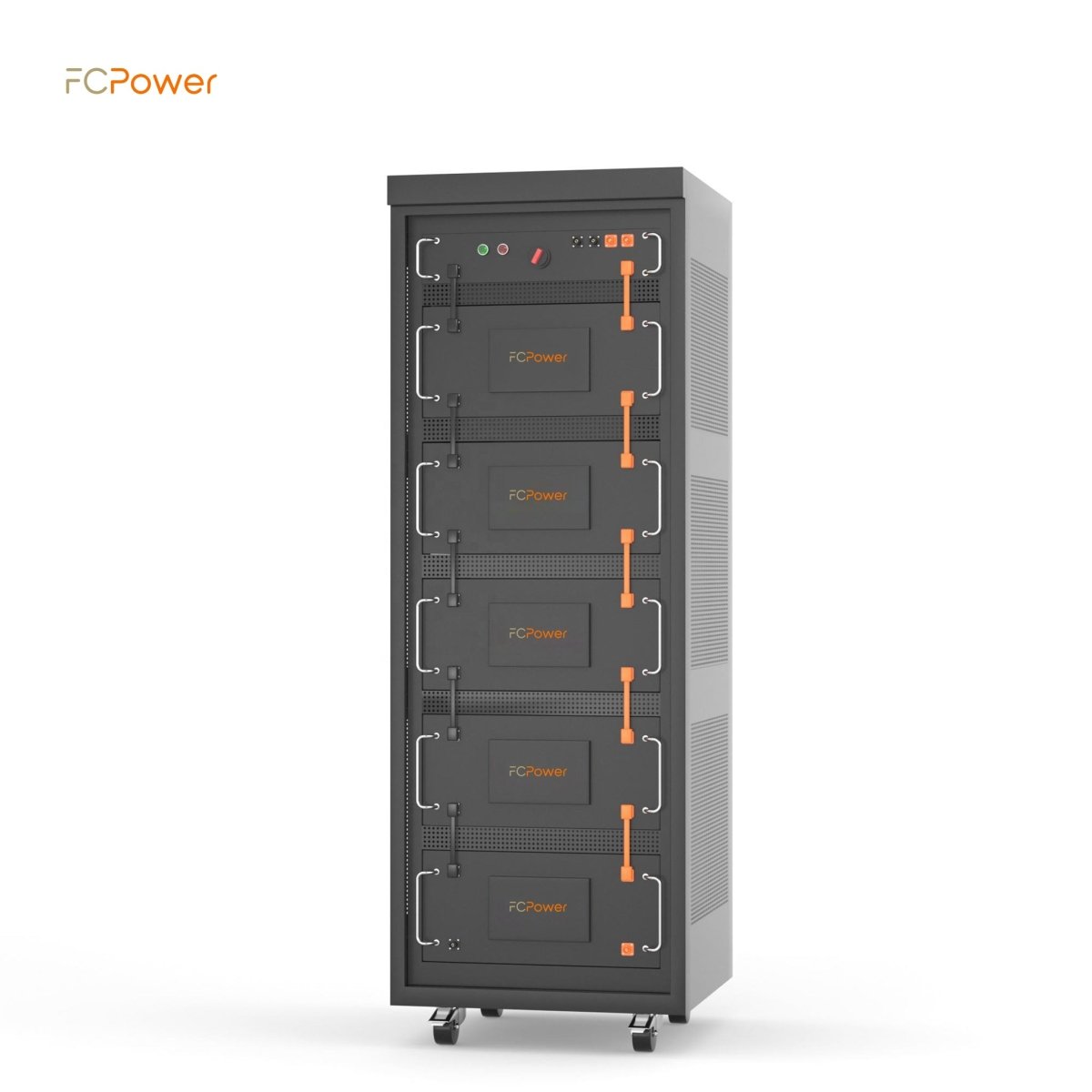

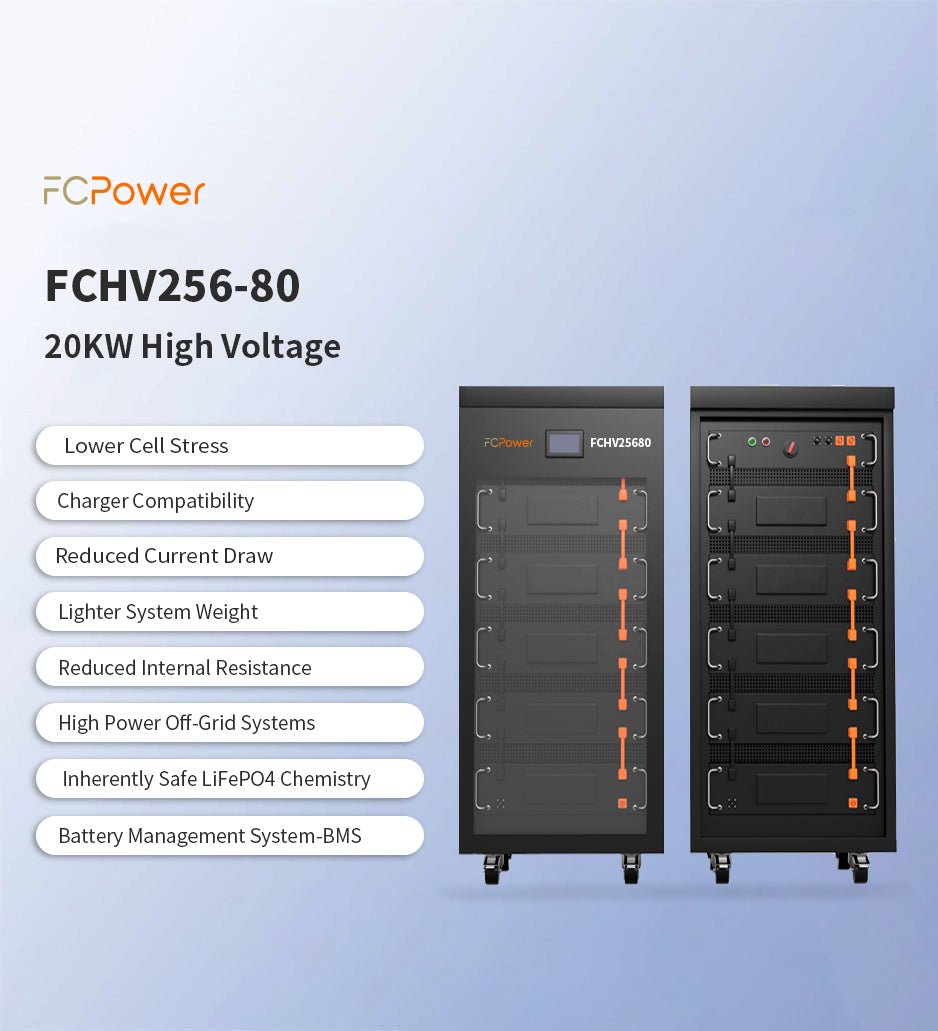

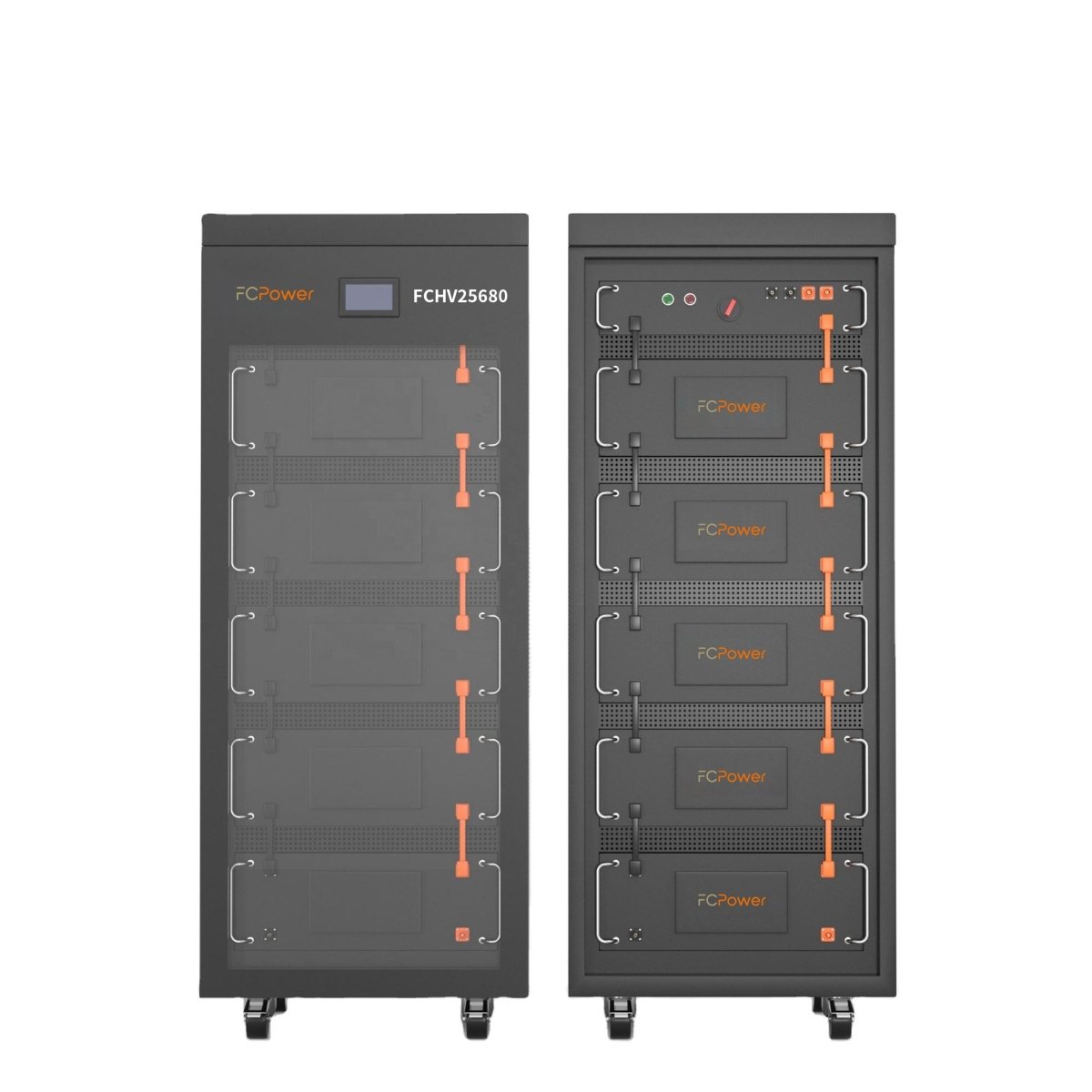

20kwh High Voltage Energy Storage
Unlock the full potential of solar energy with our 20kWh High Voltage Energy Storage system, featuring a 256V 80Ah LiFePO4 battery. Reduce your reliance on the grid, lower your energy bills, and embrace sustainable living with this efficient and reliable solution. Take control of your energy future today.
|
Rated voltage
|
256V
|
|||||
|
Working voltage range
|
184-292V
|
|||||
|
Charge voltage
|
272-276V
|
|||||
|
Floating charge voltage
|
268-272V
|
|||||
|
Rated capacity
|
50AH
|
80AH
|
105AH
|
160AH
|
230AH
|
280AH
|
|
Energy
|
12.8KWH
|
20.48KWH
|
26.88KWH
|
40.96KWH
|
59.34KWH
|
71.68KWH
|
|
Rated charge current
|
25A
|
40A
|
50A
|
80A
|
115A
|
140A
|
|
Peak charge current
|
50A
|
80A
|
105A
|
160A
|
230A
|
280A
|
|
Rated discharge current
|
50A
|
80A
|
105A
|
160A
|
230A
|
280A
|
|
Peak discharge current
|
100A
|
160A
|
210A
|
320A
|
460A
|
460A
|
|
Charge temperature
|
0-55℃
|
|||||
|
Discharge temperature
|
-10-55℃
|
|||||
|
Optimum temperature
|
15-25℃
|
|||||
|
Cooling method
|
Natural cooling
|
|||||
|
Relative humidity
|
5%-95%
|
|||||
|
Altitude
|
≤2000M
|
|||||
|
Cycle Life
|
≥8000times@80%DOD，0.5C/0.5C，25℃
|
|||||
|
Communication interfaces
|
CAN2.0/RS485/Dry
|
|||||
|
Protection
|
Over temperature, over current, over-voltage, insulation, and other multiple protection
|
|||||
|
Display
|
LCD
|
|||||
|
Design lifetime
|
≥10 years
|
|||||
|
Certification
|
UN38.3/UL1973/IEC62619
|
|||||
|
Dimension（L*W*H）
|
600*600*1287MM
|
600*600*1510MM
|
600*600*1510MM
|
600*600*1465MM
|
600*660*1643MM
|
600*800*1643MM
|
|
Weight
|
240KG
|
300KG
|
325KG
|
385KG
|
465KG
|
565KG
|
|
Module module
|
51.2V50AH
|
51.2V80AH
|
51.2V105AH
|
51.2V160AH
|
51.2V230AH
|
51.2V280AH
|
|
Serial/Parallel
|
16S1P
|
16S1P
|
16S1P
|
16S1P
|
16S1P
|
16S1P
|
|
Module dimension
|
482.6*416.2*132.5MM
|
482.6*416.2*177MM
|
482.6*416.2*177MM
|
482.6*554*221.5MM
|
482.6*614*265.9MM
|
482.6*754*265.9MM
|
|
Module weight
|
30KG
|
41.5KG
|
46.5KG
|
72KG
|
90KG
|
114KG
|
|
Number of modules
|
4PCS
|
4PCS
|
4PCS
|
4PCS
|
4PCS
|
4PCS
|
|
Battery type
|
LiFePO4
|
LiFePO4
|
LiFePO4
|
LiFePO4
|
LiFePO4
|
LiFePO4
|
Unleash the Power of the Sun: 20kWh High-Voltage Energy Storage (256V 80Ah LiFePO4 Battery)
Take control of your energy future with a revolutionary 20kWh high-voltage energy storage system featuring robust 256V 80Ah LiFePO4 batteries. This advanced solution allows you to store a significant amount of solar energy generated during the day and use it whenever needed, even at night or during extended cloudy periods.
Key Features:
- Unmatched Capacity: Store a massive 20kWh of solar energy, enough to power your entire home for extended periods during outages or on low-sun days. This makes it ideal for residences with high energy consumption.
- High-Voltage Efficiency: The 256V system experiences lower energy losses compared to lower voltage setups, maximizing the efficiency of your energy storage and utilization.
-
Long-lasting LiFePO4 Batteries: The system utilizes 256V 80Ah LiFePO4 batteries, renowned for:
- Safety: Inherent stability reduces the risk of overheating or explosions compared to other lithium chemistries, providing peace of mind.
- Lifespan: Experience extended lifecycles (typically 6,000-10,000 cycles) for years of dependable energy storage.
- Deep Discharge Tolerance: Discharge the battery to a greater depth without harming its lifespan, maximizing your usable energy.
Benefits of Integrating a 20kWh High-Voltage Energy Storage System with Solar Panels:
- Enhanced Self-Sufficiency: Significantly reduce reliance on the grid and enjoy greater energy independence.
- Peak Shaving: Store excess solar energy during peak production times and use it during peak grid pricing hours to save money on electricity bills.
- Power Outage Backup: Maintain essential appliances and electronics during outages, ensuring peace of mind and continuity for critical systems.
- Optimize Solar Energy Usage: Capture and utilize more of your solar energy production, maximizing your investment in solar panels.
- System Compatibility: Ensure the system's voltage (256V) aligns with your existing solar inverter for seamless integration.
- Scalability: Future-proof your system by choosing a model that allows adding more battery modules for increased capacity as your energy needs evolve.
A 20kWh high-voltage energy storage system with 256V 80Ah LiFePO4 batteries is a powerful solution for homeowners with high energy demands seeking to maximize self-sufficiency and optimize their solar panel investment. It empowers greater control over your energy use, significant cost savings through peak shaving, and peace of mind during outages.
