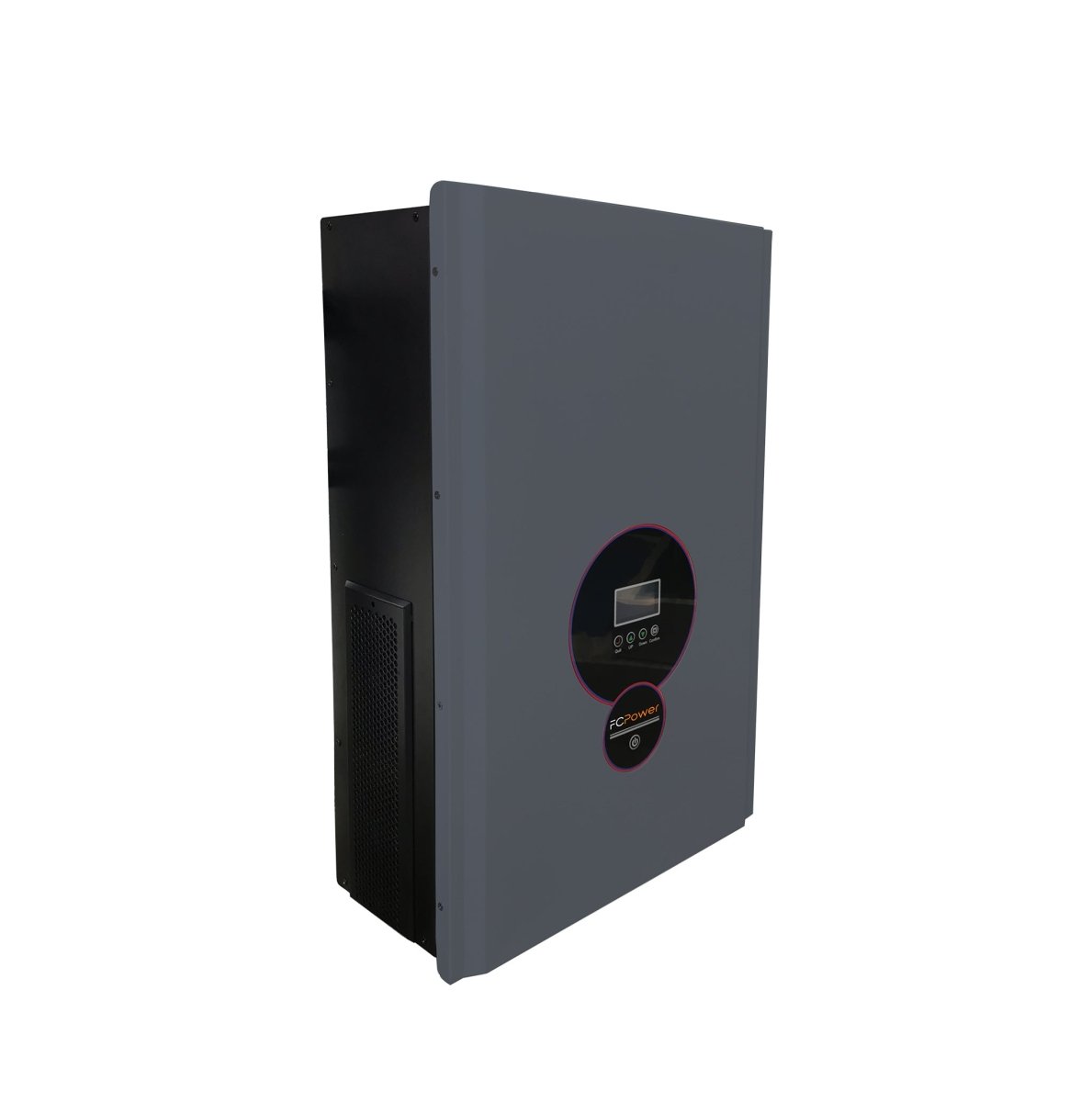

5kW Split Phase Power Inverter: Power Your World with Sustainable Energy

Unlock the potential of solar energy with our advanced 5kW Split Phase Power Inverter. This inverter is designed to convert solar power into reliable, clean electricity for your home or business, ensuring efficiency and sustainability. With cutting-edge features and robust construction, the 5kW Split Phase Power Inverter is your key to achieving energy independence.



Model

3000W

4000W

5000W

6000W

8000W

10000W

12000W





Inverter Input

Rated capacity

3000W

4000W

5000W

6000W

8000W

10000W

12000W

peak power

9000W

12000W

15000W

18000W

24000W

30000W

36000W

Commercial Power

110VAC:83V-137VAC

120VAC:90V-150VAC

220VAC:176V-264VAC

range

220VAC:165V-275VAC

230VAC:173V-287VAC

230VAC:184V-276VAC

AC frequency range

45-65HZ

Efficiency

>85%

MPPT Solar controller

MPPT Solar controller

50A/60A/80A

80A/100A

Solar input power

1200W/1440W/2400W2880W/3840W

3840W/4800W/9600W

Solar input voltage(max)

12VDC/24V       DC:130V 48V      DC:160V 96V       DC 280V









Battery

Type

lead-acid battery GEL battery lithium battery

DC Voltage

24VDC/48VDC

48VDC/96VDC

Input voltage range

4VDC:21-30VDC        48VDC:42-60VDC         96VDC:84-120VDC

Floating charge set

24V:25.8V 27.2V       48V:51.6V 54.4V        96V:103.2V 108.8V

Low voltage restored

24VDC:25.2-28.8VDC       48VDC:50.4-57.6VDC       96VDC:100.8-115.2VDC

Low voltage shutdown set

24VDC:20-21.8V             48VDC:40-43.6V            96VDC:80V-87.2V

over voltage protection

24VDC:33.4V               48VDC:66.8V

over voltage alarm

24VDC:30V               48VDC:60V

AC charging

5A-35A(40A, 50A, 60A,70A Optional











Inverter Output

Capable of starting electric moto

1.5HP

2HP

3HP

AVR voltage range(VAC)

110/120/220/230/240±10%Auto-sensing

Without

Power factor

100%

Transfer time

Typical: 5ms(lncluding detection time)

Temperature protection

>85C alarm 290C machine shut off

overload

IPS automatically shut down if overload exceeds 110%-120% of normal value for 30 seconds, IPS automatically

Wave form

resume work if overload comes to rated load.

Frequency

Pure sine wave

Output frequency range

Commercial power supply: shared frequency with the commercial inversion state:60/50+0.5

(electric supply mode)

Tracking automatically

Protection

Overload, short circuit,battery high and low voltage, AC input high and low voltage protection

Conversion method

Interactive

temperature

Operating Temperature

0C ~70C

Thermal method

Cooling fan in intelligent control <42'C fan rotates slowly to >45'C fan rotates fast



Appearance

External Size(mm)(L*W*H)

510*325*215mm

645*325*215mm

65*320*250mm

Gross Size(mm)(L*W*H)

560*380*280mm

730*400*290mm

840*405*320mm

Net weight(kg)

20

31

34

35

52

54

56

Gross weight(kg)

22

35

37

38

56

58

60

Key Features

High Efficiency and Reliability

  • 5kW Output Power: Provides a robust 5kW of power, meeting diverse energy demands with ease.
  • Split Phase Operation: Supports 120V/240V output, making it versatile for various electrical systems and appliances.
  • Hybrid Functionality: Seamlessly integrates with solar panels and LifePO4 batteries, suitable for both grid-tied and off-grid applications.

Advanced Technology

  • Pure Sine Wave Output: Ensures clean, stable electricity to protect sensitive electronics and enhance their performance.
  • MPPT (Maximum Power Point Tracking): Maximizes energy harvest from your solar panels, ensuring optimal efficiency.
  • Battery Compatibility: Designed to work flawlessly with 48V LifePO4 batteries, providing excellent energy storage and longevity.

User-Friendly Design

  • LCD Display: Offers real-time monitoring of system performance, including voltage, current, and power output.
  • Remote Monitoring: Allows you to track and manage your inverter’s performance from anywhere using a dedicated mobile app.
  • Easy Installation: Compact and lightweight design facilitates quick and hassle-free installation, saving time and effort.

Technical Specifications

  • Model: 5kW Split Phase Power Inverter
  • Rated Power: 5000W
  • Input Voltage: 48V DC
  • Output Voltage: 120V/240V AC
  • Efficiency: > 98%
  • Battery Type: Compatible with LifePO4 and other lithium batteries
  • Operating Temperature: -20°C to 60°C
  • Dimensions: 480mm x 320mm x 180mm
  • Weight: 15kg

Benefits of Using a Split Phase Power Inverter

Energy Independence

  • Reduced Energy Bills: Generate your own electricity and significantly reduce or eliminate your dependence on utility companies.
  • Sustainability: Solar energy is a renewable and clean resource, making it an environmentally friendly choice.
  • Reliability: With a hybrid system, you can ensure a continuous power supply even during grid outages, providing peace of mind and security.

Versatility and Scalability

  • Multiple Applications: Suitable for residential, commercial, and industrial use, offering flexible energy solutions.
  • Expandable System: Start small and scale up your solar energy system as your energy needs increase, thanks to the inverter’s scalable design.

Applications

  • Residential Homes: Power household appliances, lighting, and electronics efficiently with clean solar energy.
  • Commercial Buildings: Reduce operational costs and enhance sustainability by integrating solar power into your business operations.
  • Remote Locations: Perfect for off-grid applications in remote areas, ensuring access to reliable electricity wherever you are.

Why Choose Our 5kW Split Phase Power Inverter?

  • Quality and Durability: Built with premium components to ensure long-lasting performance and reliability.
  • Excellent Customer Support: Our dedicated support team is always ready to assist with any questions or issues.
  • Warranty and Guarantee: Comes with a comprehensive warranty, providing peace of mind and confidence in your purchase.

Installation and Maintenance

Easy Installation

  • Step-by-Step Guide: Detailed installation manual with clear instructions for straightforward setup.
  • Professional Support: We offer professional installation services to ensure your inverter is installed correctly and efficiently.

Minimal Maintenance

  • Durable Design: Built to withstand harsh environmental conditions, our inverters require minimal maintenance.
  • Regular Monitoring: Utilize the remote monitoring feature to keep track of your system’s performance and address any issues promptly.

Conclusion

Investing in our 5kW Split Phase Power Inverter is a smart choice for anyone looking to embrace renewable energy and achieve energy independence. With its high efficiency, advanced technology, and user-friendly design, this inverter provides a reliable and sustainable energy solution for various applications. Join the green energy revolution and enjoy the benefits of clean, renewable solar power with our top-of-the-line 5kW Split Phase Power Inverter.

How to Get Started

Step 1: Assess Your Energy Needs

Determine the energy requirements of your home or business to select the right number of solar panels and batteries for your system.

Step 2: Choose the Right Components

Pair your 5kW Split Phase Power Inverter with compatible 48V LifePO4 batteries and high-efficiency solar panels to create a complete solar energy system.

Step 3: Installation

Follow the provided installation guide or hire our professional installation services to set up your system quickly and correctly.

Step 4: Monitor and Maintain

Utilize the remote monitoring app to keep track of your system’s performance and perform regular maintenance checks to ensure optimal operation.

Frequently Asked Questions (FAQs)

What is a Split Phase Inverter?

A split phase inverter converts DC (direct current) from solar panels or batteries into AC (alternating current) that can be used by household appliances. It provides both 120V and 240V outputs, making it versatile for different types of electrical equipment.

How does a Hybrid Inverter work?

A hybrid inverter can work with both the electrical grid and a battery storage system. It allows you to store excess solar energy in batteries for use when the sun isn’t shining or during power outages.

What are the benefits of using LifePO4 batteries?

LifePO4 (Lithium Iron Phosphate) batteries offer several advantages, including longer lifespan, higher safety, better thermal stability, and improved efficiency compared to traditional lead-acid batteries.

How do I monitor my solar power system?

Our 5kW Split Phase Power Inverter comes with an LCD display for local monitoring and a mobile app for remote monitoring, allowing you to track your system’s performance from anywhere.

What kind of maintenance does the inverter require?

The 5kW Split Phase Power Inverter is designed for minimal maintenance. Regularly check the system for dust, debris, and ensure connections are secure. Utilize the remote monitoring feature to stay updated on system performance.



5kW Split Phase Solar Inverter
5kW Split Phase Solar Inverter
5kW Split Phase Solar Inverter
5kW Split Phase Solar Inverter
5kW Split Phase Solar Inverter
