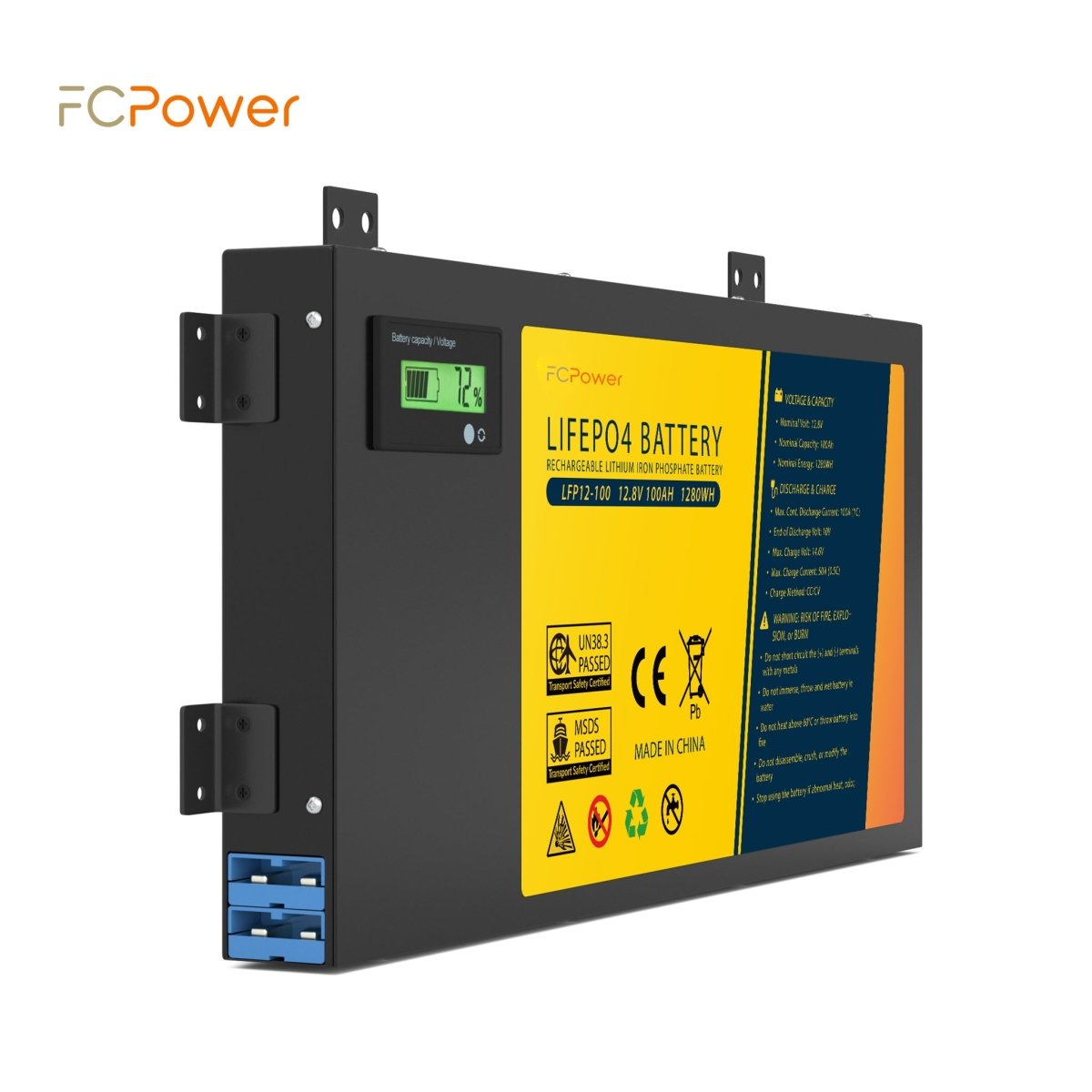

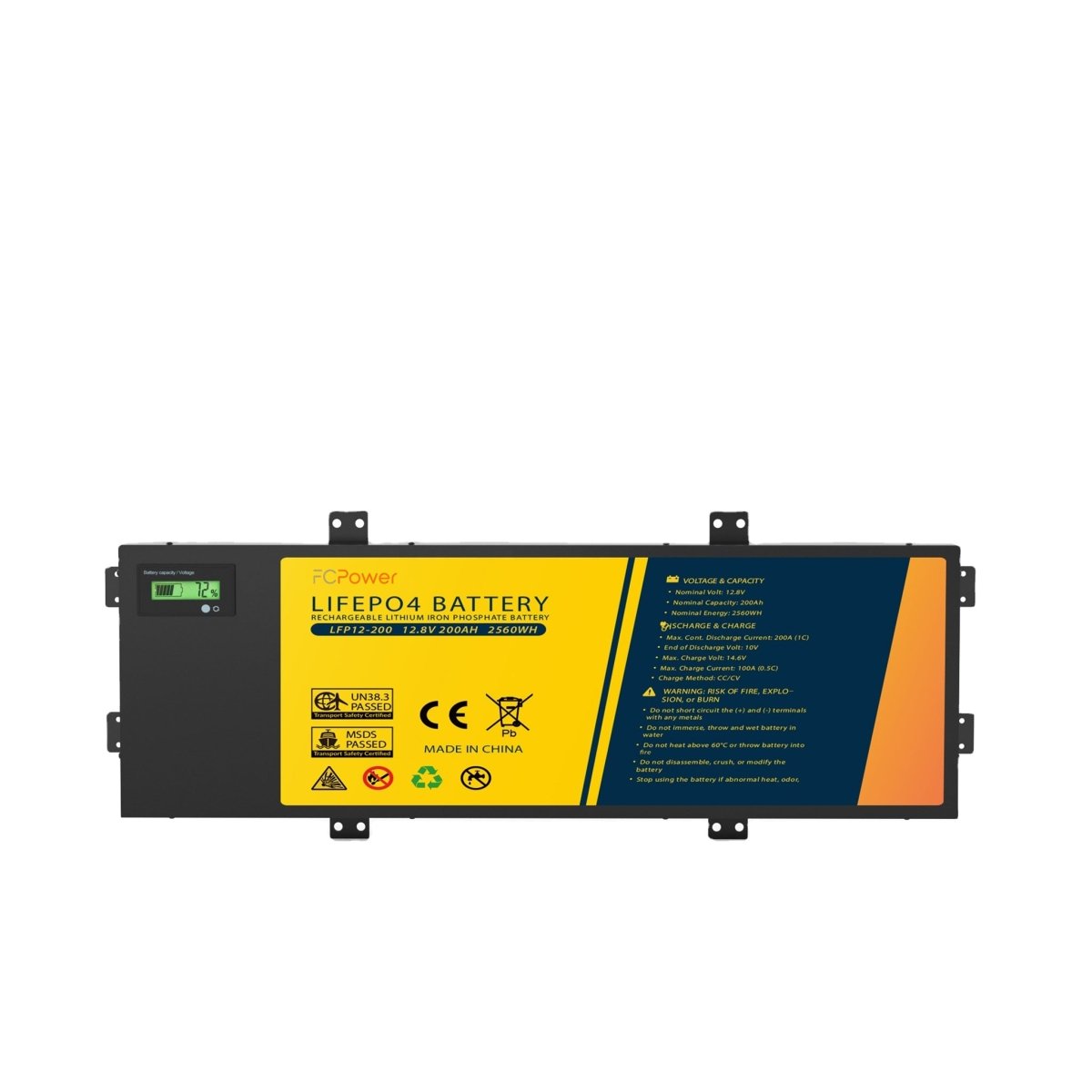

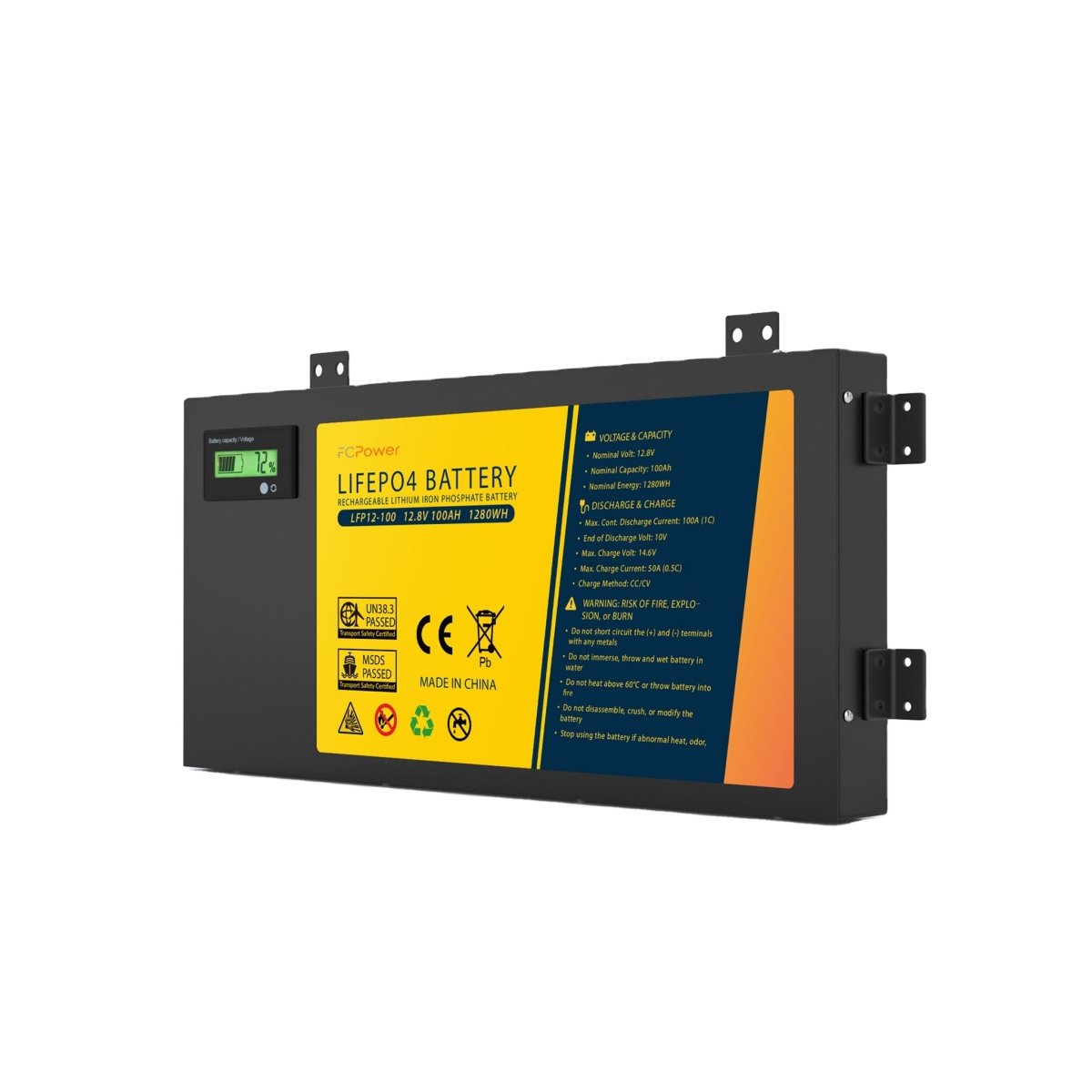

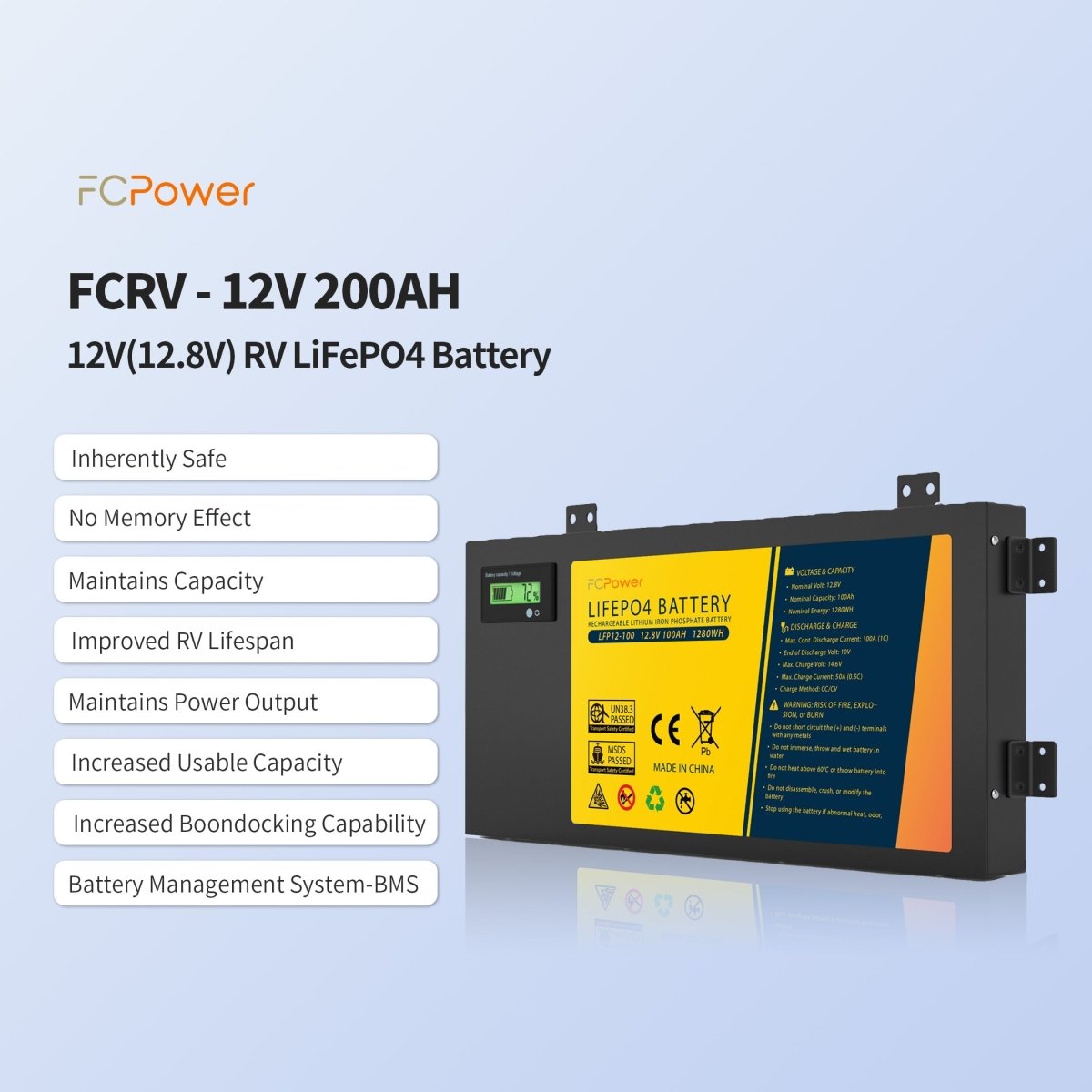

Lifepo4 12v 200ah RV Lithium Battery
Experience the freedom of the open road with our LiFePO4 12V 200Ah RV Lithium Battery. Engineered for extended battery life and lightweight efficiency, our battery is the perfect companion for your RV adventures. Say goodbye to limitations and hello to endless exploration.
|
Function Parameter
|
|
|
Nominal Capacity
|
200Ah
|
|
Nominal Voltage
|
12.8V
|
|
Internal Resistance
|
≤22mΩ
|
|
Cycle Life
|
>6000
|
|
Months Self Discharge
|
<3%
|
|
Charge Data
|
|
|
DC Normal Charge Voltage
|
14.6V
|
|
Dimension
|
850*70*257mm Or Customized
|
|
Allowed Max. Charge Current
|
50Adc
|
|
14.6V
|
|
|
Discharge Data
|
|
|
Continuous Discharge Current
|
100A
|
|
Allowed Max. discharge current
|
100A (option:100Adc)
|
|
Working Condition
|
|
|
Charge Temperature
|
0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity
|
|
Discharge Temperature
|
-20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity
|
|
Storage Temperature
|
0℃ to 40℃ (32℉ to 104℉) @60±25% Relative Humidity
|
|
Enclosure Protection Level
|
IP20
|
Advantages of LifePO4 12V 200Ah RV Lithium Battery:
- Lightweight Champion: Compared to lead-acid counterparts, these batteries are significantly lighter, contributing to better gas mileage and handling for your RV, especially on those long road trips.
- Enduring Lifespan: LifePO4 batteries boast an exceptional lifespan, typically lasting around 6,000 to 10,000 cycles, compared to 400-800 cycles for lead-acid batteries. This translates to far fewer battery replacements over the years, saving you money in the long run.
- Speedy Charging: Enjoy the advantage of much faster charging times compared to lead-acid batteries. This is particularly beneficial for RVers who rely on short bursts of sunshine or generator power to recharge.
- Deeper Discharges: These batteries can be discharged to a greater depth without harming the battery itself. This is a significant perk for off-grid campers (boondocks) who may not have constant access to shore power.
- Safety First: Inherent safety features of LiFePO4 chemistry make them much safer than lead-acid batteries. They are less susceptible to overheating or exploding, even if damaged.
Things to Consider Before You Buy:
- Cost: LifePO4 batteries generally have a higher initial cost than lead-acid batteries. However, their extended lifespan, lighter weight, and other advantages can make them a worthwhile investment.
- Compatibility: Ensure your RV's charging system is compatible with LiFePO4 chemistry. In some cases, modifications might be required to accommodate these batteries.
- Battery Management System (BMS): A BMS is crucial for safety, protecting the battery from overcharging, over-discharging, and overheating. Verify that your chosen LifePO4 battery has a built-in BMS.
Applications for LifePO4 12V 200Ah RV Lithium Battery:
- Powering Essential Appliances: Run your RV's refrigerators, lights, and other essential appliances for extended periods, thanks to the high 200Ah capacity.
- Deep Cycle Discharging: The deep discharge tolerance allows you to confidently use more of the battery's capacity without reducing its lifespan, unlike lead-acid batteries.
- Solar Power Compatibility: These batteries integrate perfectly with solar power systems for your RV, enabling you to harness renewable energy for off-grid camping or reducing reliance on shore power.
