High-Voltage Rack-Mount Batteries

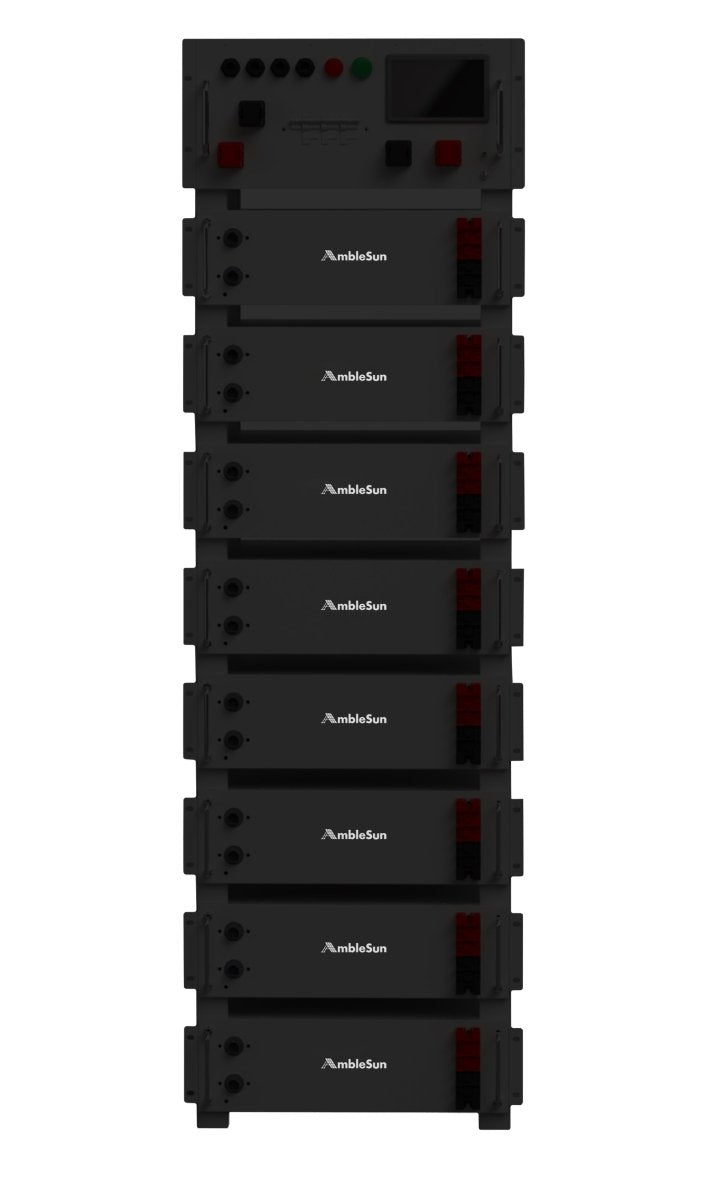

The global transition to renewable energy has created unprecedented demand for advanced battery storage solutions. Businesses, industries, and utilities require scalable, high-capacity batteries capable of supporting clean energy systems, reducing grid dependency, and providing backup power security. The 143kWh Rack-Mount High-Voltage Battery (512V 280A) is designed to meet these needs with unmatched efficiency, safety, and scalability.

This powerful rack-mount energy storage system uses LiFePO4 (Lithium Iron Phosphate) technology, offering long life, superior safety, and eco-friendly performance. With a rated energy capacity of 143kWh, operating at 512 volts and 280 amps, it is ideal for commercial, industrial (C&I), and utility-scale solar-plus-storage projects.

Key Specifications

  • Energy Capacity: 143kWh
  • Nominal Voltage: 512V
  • Nominal Current: 280A
  • Battery Type: Lithium Iron Phosphate (LiFePO4)
  • Design: Rack-Mount, modular, scalable
  • Application: Commercial, Industrial, and Utility-Scale Energy Storage
  • Cycle Life: 6,000+ cycles at 80% depth of discharge
  • Efficiency: >95% round-trip efficiency
  • Safety Systems: BMS integrated for cell balancing, overcharge, and thermal protection
Items

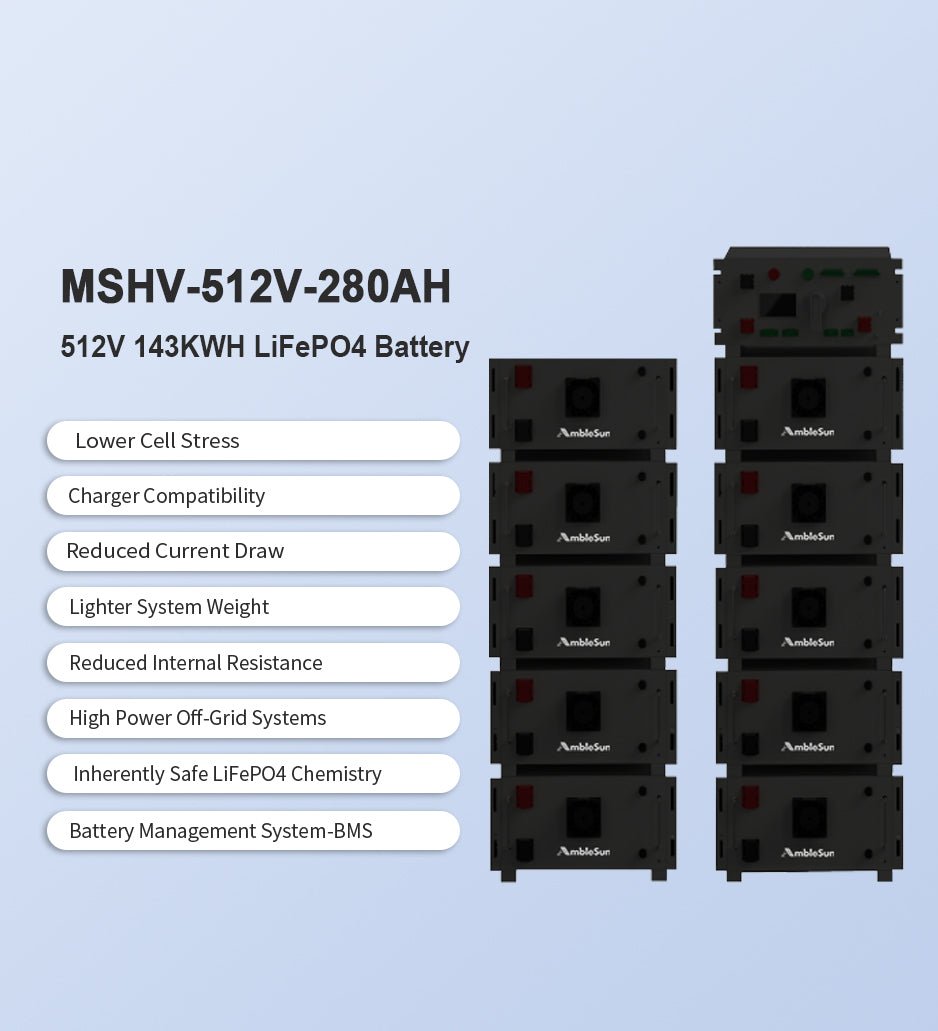

MSHV 512V280AH

Nominal voltage

512V

Nominal capacity

280Ah

Nominal energy

143KWh

Voltage range

468V~568V

Cell model/Configuration

3.2V280Ah/160S1P

Max. discharge current

140A

Scalability

up to 10 parallel

IP rating

IP20

Cycle life

≥6000 cycles

Net weight

~1080kg

Dimension(W*H*D)

1475*950*1100mm

Communication

RS485(B)-BAT/RS485(A)-PC/Canbus-Inverter

Design life

≥15 years(25℃)

Protection

BMS,Breaker

Operation Temperature

-20~50℃

Relative humidity

<95%(Non-condensing)

Install location

3000m Indoor

Installation

Stack/ Rack mounted
Certification

IEC62619 /  UN38.3 / CE  / CEC



Why Choose a High-Voltage 143kWh Rack-Mount Battery?

 Superior Storage Capacity for Demanding Applications

With 143kWh of usable capacity, this rack-mount battery is engineered for energy-intensive operations. It can store excess solar or wind power and discharge during peak demand, ensuring cost savings and energy reliability.

 High-Voltage 512V System for Efficiency

Operating at 512 volts, this high-voltage system reduces current requirements, minimizing energy losses, cable thickness, and heat generation. The result is higher efficiency, easier integration with inverters, and better overall system performance.

 Scalable Rack-Mount Design

The modular, rack-mount design allows multiple units to be connected in parallel or series, enabling scalability from hundreds of kWh to multi-MWh systems. This flexibility makes it suitable for both C&I projects and large-scale containerized BESS systems.

 High Current Capacity – 280A Output

With a nominal current of 280A, the battery can support high-power applications, making it suitable for heavy equipment, manufacturing facilities, and backup power for large-scale operations.

 LiFePO4 Battery Chemistry

LiFePO4 is the preferred choice for energy storage due to:

  • Safety: Stable thermal and chemical structure prevents fire risks.
  • Longevity: 6,000+ cycles, delivering 10–15 years of service life.
  • Eco-Friendliness: Non-toxic, recyclable, and environmentally sustainable.
  • High Efficiency: Delivers >95% round-trip efficiency, maximizing energy use.

Applications of the 143kWh High-Voltage Battery

1. Commercial Energy Storage

Businesses can leverage this rack-mount battery for:

  • Peak shaving: Reducing energy costs during peak grid pricing.
  • Backup power: Ensuring uninterrupted operations during blackouts.
  • Solar-plus-storage integration: Maximizing rooftop or ground-mounted solar efficiency.

2. Industrial Energy Storage

Factories, warehouses, and heavy industries can use this high-voltage battery for:

  • Load shifting: Storing energy during off-peak hours, using it during peak times.
  • Backup for critical operations: Preventing downtime in energy-sensitive industries.
  • Grid stabilization: Providing reactive power support and frequency regulation.

3. Utility-Scale Solar Projects

This 143kWh battery can be combined into containerized BESS systems for:

  • Renewable integration: Storing solar and wind energy for consistent supply.
  • Grid resilience: Supporting demand response and microgrid applications.
  • Scalability: Expanding capacity to 1MWh, 5MWh, or even 100MWh systems.

Technical Advantages

 High Energy Density

Rack-mount design ensures compact, space-saving installation, perfect for data centers, industrial facilities, and solar farms.

 Integrated BMS (Battery Management System)

Each battery includes a smart BMS to manage:

  • Cell balancing
  • Overcharge and over-discharge protection
  • Short-circuit protection
  • Thermal management

 Compatibility with PCS and EMS

Designed for seamless integration with Power Conversion Systems (PCS) and Energy Management Systems (EMS), ensuring smart control, monitoring, and optimization of energy use.

 Safety First

The system includes multi-layer safety features such as fire suppression compatibility, liquid cooling options, and built-in protections, meeting international safety standards (UL, CE, IEC).

Benefits of the 143kWh 512V 280A Battery

  1. Energy Independence – Reduce reliance on the grid by storing renewable energy.
  2. Cost Savings – Avoid peak charges and lower electricity bills.
  3. Reliability – Protect operations with robust backup power.
  4. Sustainability – Support net-zero goals with clean LiFePO4 storage.
  5. Scalability – Expand from 143kWh to multi-MWh systems as energy demand grows.
  6. Efficiency – High-voltage architecture ensures reduced energy losses.
  7. Long Service Life – Over a decade of reliable performance with minimal maintenance.
  • 143kWh high-voltage battery for solar farms
  • 512V 280A rack-mount LiFePO4 battery system
  • Containerized BESS system with rack batteries
  • Commercial and industrial solar-plus-storage solutions
  • High-voltage rack batteries for renewable integration
  • 143kWh modular energy storage system
  • Scalable lithium iron phosphate rack-mount battery

The 143kWh Rack-Mount High-Voltage Battery (512V 280A) is a future-ready energy storage solution designed for demanding commercial, industrial, and utility-scale applications. With its modular rack design, high-voltage efficiency, and LiFePO4 chemistry, it delivers long life, safety, and scalability to support the global shift toward renewable energy.

Whether used as a standalone commercial backup system or integrated into a multi-MWh containerized BESS, this high-voltage rack-mount battery ensures cost savings, grid stability, and sustainability.

Investing in the 143kWh 512V 280A LiFePO4 battery means securing reliable, clean, and efficient energy storage for today and the future.
